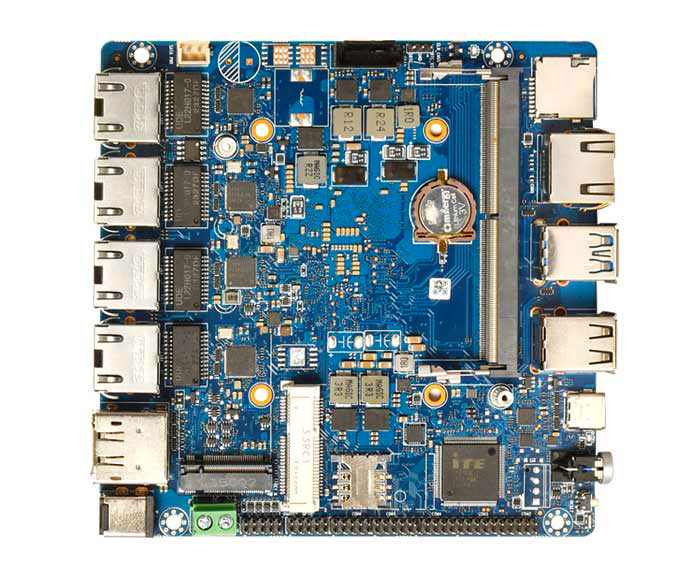

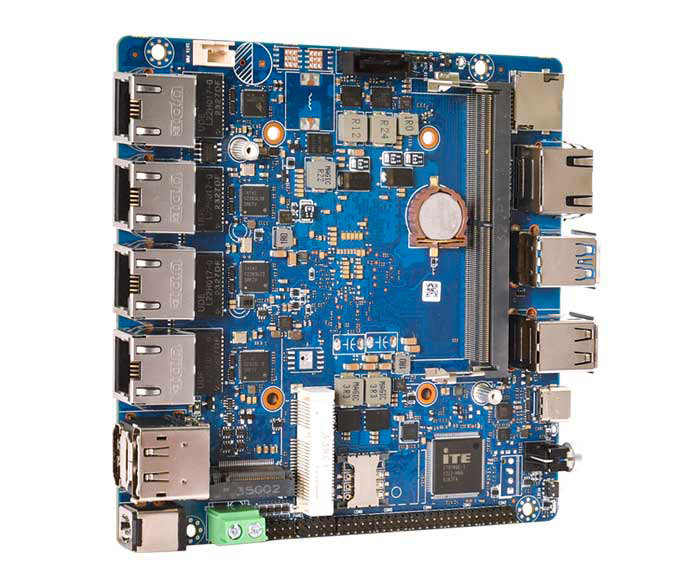

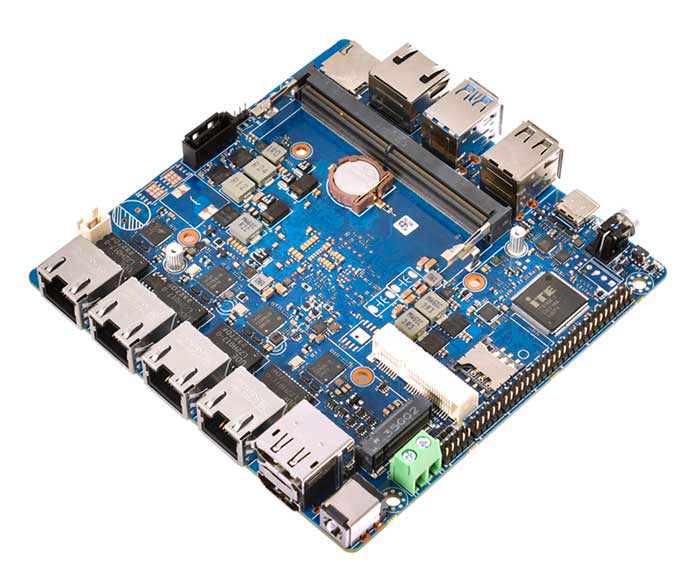

Processor
|

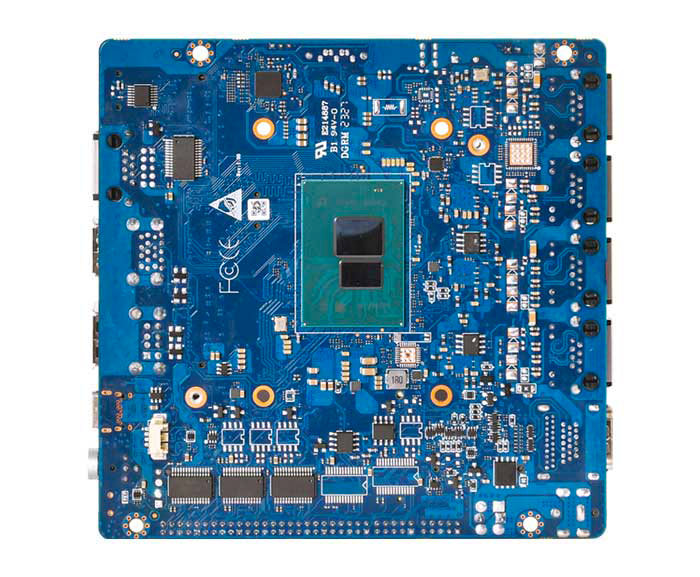

Onboard Intel Alder Lake-N serial processor,TDP 15W
|
|
|
EFI BIOS
|
|
Ram
|
1*DDR5 SO-DIMM，Max 16GB
|
|
Rom
|
1*M.2 M-Key 2280(NVMe PCIe 4.0 x2/SATA3.0 protocol)
|
|
|
1*SATA3.0 slot，2Pin 5V power
|
|
Display port
|
1*HDMI2.0,support 4096x2160@60Hz
|
|
|
1*DP,support 7680x4320@60Hz
|
|
|
Type-C,support DP 7680x4320@60Hz and USB3.2 Gen2
|
|

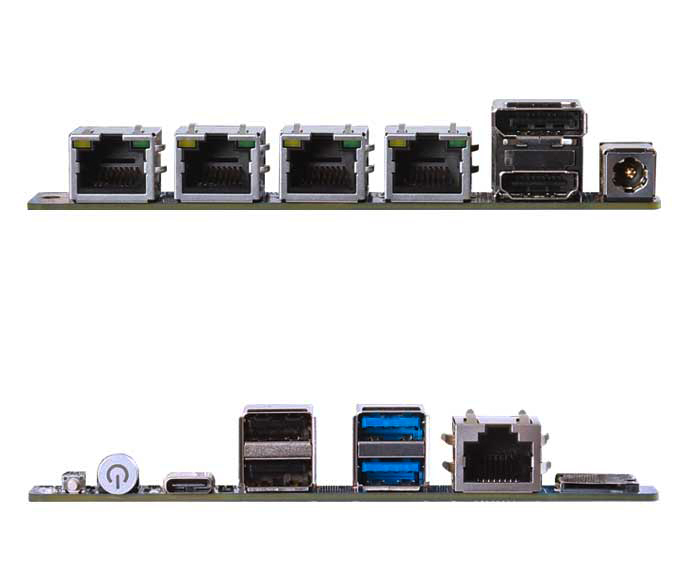

I/O interface
|
Power button,reset button,2*USB3.0,2*USB2.0,TF card slot
|
|
|
DC JACK,HDMI+DP,Type-C
|
|
|
4*2.5G LAN（3*Intel 226-V,1*RTL8156B，choose POE or not）,RJ45 console
|
|
Extended Interface/Function
|
External TPM2.0 is optional, but not by default. The default is CPU built-in TPM2.0
|
|
|
1*MiniPCIe（PCIe+USB2.0+SATA3.0 protocol，WIFI/BT/mSATA module）,Micro SIM slot
|
|
|
5*RS232 header，pitch 2.0mm；4*GPIO
|
|
|
1*4Pin PWM CPU FAN
|
|
Power
|
DC 12-19V，over 36W
|
|
working environment
|
Working temperature: -20℃ ~ +60℃; Working humidity: 5% ~ 90%
|
|
|
Storage temperature: -40℃ ~ +85℃; storage humidity: 5% ~ 90%
|
|
operating system support
|
Windows10，Windows11，Linux
|
|
Size
|
120x120 mm
|
|
net weight
|
About 120g without radiator, about 220g with radiator
|
