Processor
|

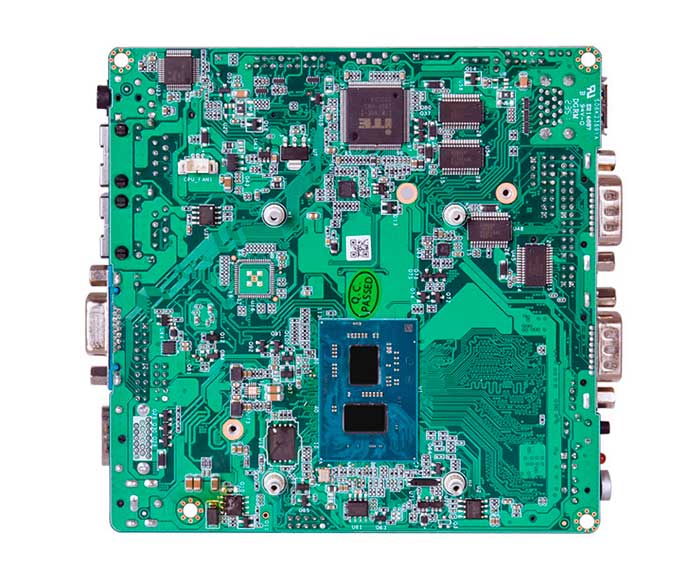

Onboard Intel Elkhart Lake series processor
|
|
|
EFI BIOS
|
|
Memory
|
1 * DDR4 SO-DIMM, supports up to 32 GB
|
|
Display
|
1 * VGA, maximum resolution 1920x1200
|
|
|
1 * HDMI2.0, maximum resolution 4K@60Hz
|
|
|
HDMI+VGA synchronous or asynchronous display
|
|
Storage
|
1 * SATA3.0
|
|
|
1 * M.2 2280 M-Key (PCIe3.0 2x/SATA3.0, hardware selection)
|
|
|
Onboard eMMC, 32GB/64GB/128GB optional
|
|
Network
|
2 * Intel i226-V network (LAN2 optional Intel i211)
|
|
Sound card
|
ALC897
|
|

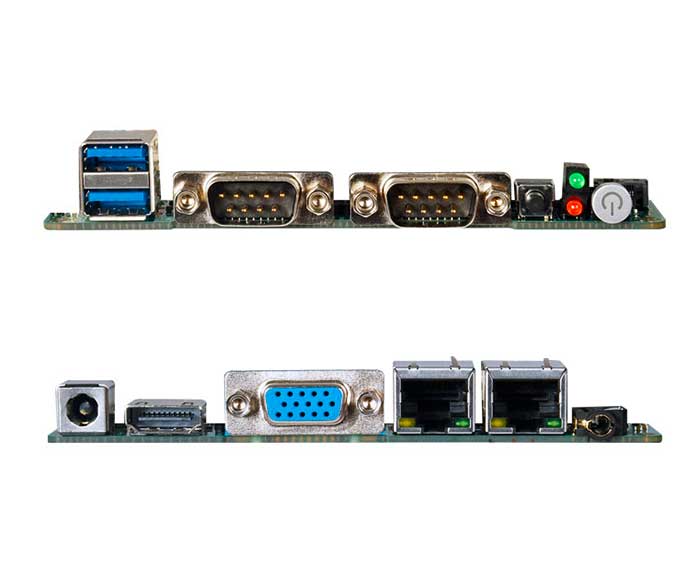

Board edge I/O interface
|
1 * VGA, 1 * HDMI
|
|
|
2 * USB3.0, 2 * DB9 COM
|
|
|
1 * DC JACK, 2 * LAN
|
|
On-board expansion
Interface/function
|
0-255 seconds, providing watchdog routine
|
|
|

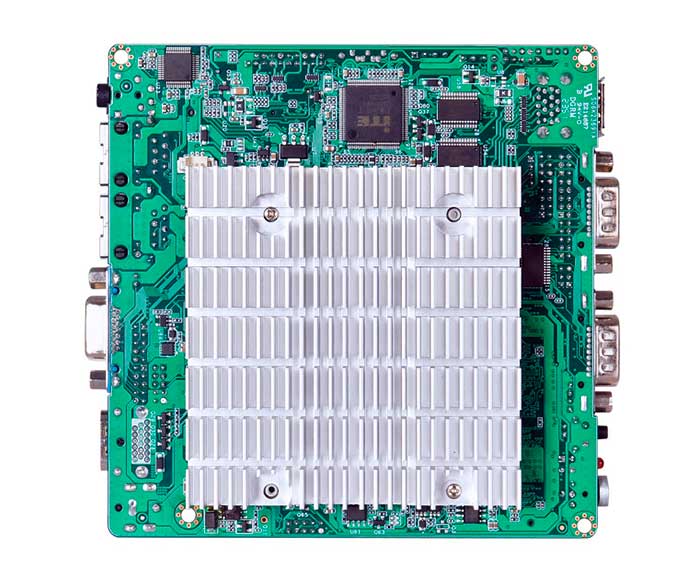

Aluminum fanless heatsink (the motherboard has a reserved fan interface that supports automatic and manual fan speed adjustment)
|
|
|
4 * USB2.0 pin headers, 2 x 5Pin, pitch 2.0mm
|
|
|
6 * COM port (COM1/2 is RS232 /RS485 jumper optional, COM3/4/5/6 is RS232)
|
|
|
8-bit GPIO, 2 x 5Pin, pitch 2.0mm
|
|
|
1 * Mini PCIe (PCIe + USB2.0 protocol)
|
|
Power Supply
|
DC 12V, 60W
|
|
Working Environment
|
Working temperature: -20℃ ~ +60℃;
Working humidity: 0% ~ 90% relative humidity, no condensation
|
|
|
Storage temperature: -40℃ ~ +85℃;
Storage humidity: 0% ~ 90% relative humidity, no condensation
|
|
Operating system
|
Windows10, Windows11, Linux
|
|
Size
|
120x120mm
|
|
Weight
|
260g including heatsink, 130g without heatsink
|
