Processor system
|
Onboard Intel Alder Lake-N series processor, TDP 15W
|
|
|
EFI BIOS
|
|
Memory
|
1 x DDR5 SO-DIMM, total maximum 16GB
|
|
Storage
|
1 x M.2 M-Key 2280 (SATA3.0 protocol)
|
|
|
1 x SATA3.0, 2Pin 5V power supply
|
|
Display
|
1 x HDMI2.0, support 4K@60Hz
|
|

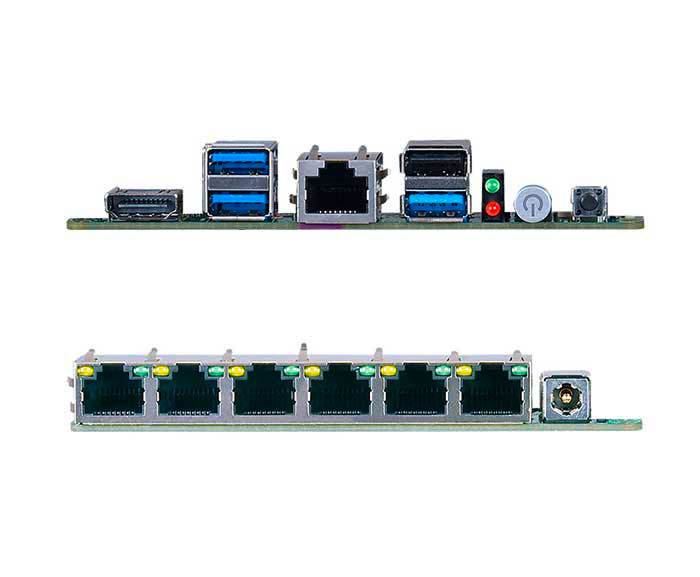

Board edge I/O interface
|
Power button, reset button, 3 x USB3.0, 1 x USB2.0
|
|
|
DC JACK, 1 x HDMI, 1 x Console
|
|
|
6 x Intel i226-V (4 x Intel i226-V optional; POE optional for LAN1/2/3/4, POE has a pop-up switch)
|
|
Expansion interface/function
|
External TPM2.0 optional, not available by default. The default is CPU built-in TPM2.0
|
|
|
1 x M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module; no PCIe protocol when using 4LAN)
|
|
|
1 x M.2 B -Key (USB3.0+USB2.0 protocol, 4G/5G module)
|
|
|
2 x RS232 pin headers, pitch 2.0mm; 8-bit GPIO, 2x5Pin, pitch 2.0mm
|
|
|
1 x USB2.0 pin header, 2x5Pin, pitch 2.0mm; F _Panel
|
|
|
1 x 4Pin PWM CPU FAN, 1 x 4Pin PWM SYS FAN
|
|
Power supply
|
DC 12-19V, 60W or above
|
|
Work environment
|
Working temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90%
|
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90%
|
|
Operating system
|
Windows 10, Windows 11, Linux
|
|
Size
|
120 x 120 mm
|
|
Net weight
|

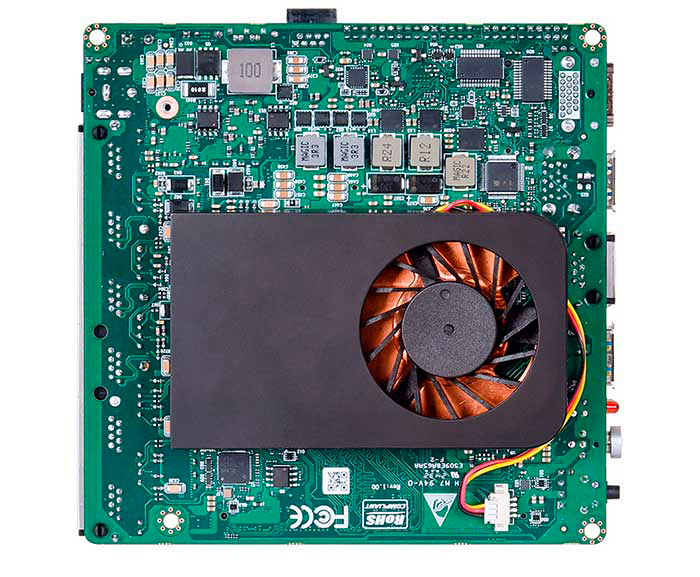

Without radiator, about 130g; with radiator, about 250g
|
