CPU
|
Integrated Intel Gemini Lake/Gemini Lake-R series CPU
|
|
|
EFI BIOS
|
|
Memory
|
1*DDR4 SO-DIMM，max support 8GB
|
|
Display
|
1*VGA，Support Resolution 1920x1200
|
|
|
1*HDMI2.0，Support Resolution 4096x2304@60HZ，Support 4K display
|
|
|
HDMI+VGA Synchronous or asynchronous display
|
|
Storage
|
1*SATA3
|
|
|
1*mSATA
|
|
|
Onboard eMMC,32GB/64GB/128GB optional
|
|
Lan port
|
2*Intel i225V 2.5G lan card
|
|

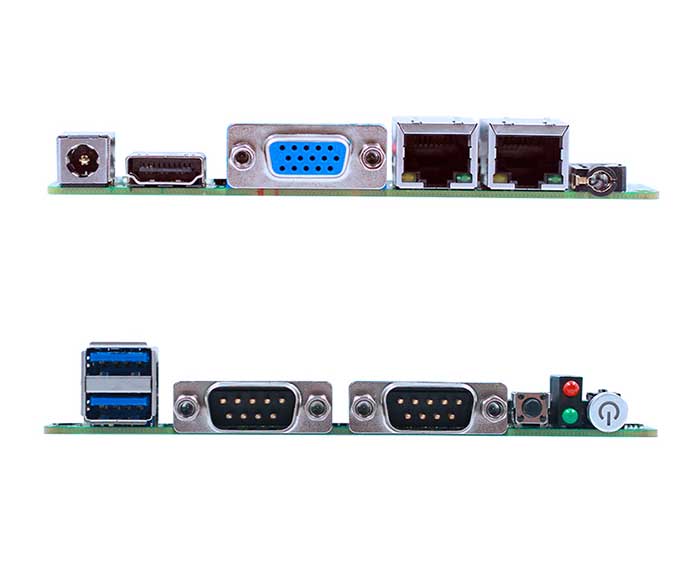

I/O port
|
1*VGA，1*HDMI2.0
|
|
|
2*RJ45
|
|
|
2*USB3.0
|
|
|
2*DB9 RS232
|
|
|
1*DC JACK
|
|
expansion interface/function
|
0-255 seconds, watchdog routine provided
|
|
|

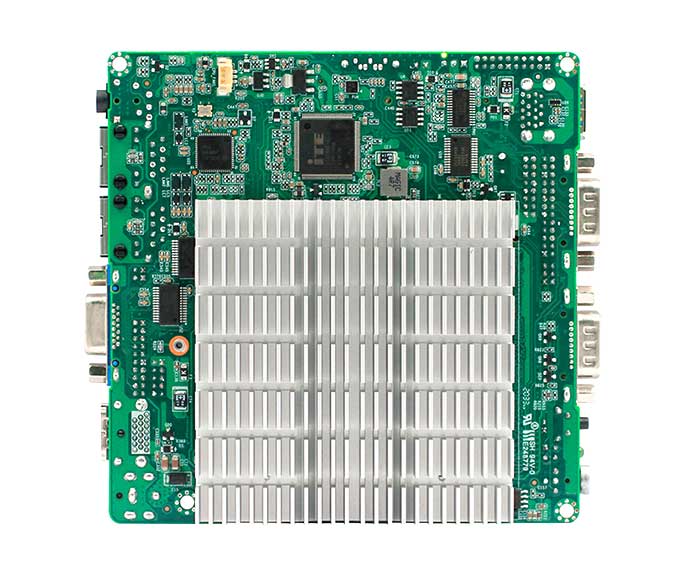

Aluminum fanless radiator (mainboard reserved fan interface can support automatic and manual fan speed adjustment)
|
|
|
4*USB2.0 pin header，2x5Pin，space 2.0mm
|
|
|
6*COM port（4*RS232，2*RS232/RS485 optional），RS485 Supports automatic flow direction control
|
|
|
8 bit GPIO，，2x5Pin，Space 2.0mm
|
|
|
1个MiniPCIe socket，Support PCIe and USB2.0 device
|
|
Power supply
|
DC12-19V
|
|
Environment
|
Working temperature：-20℃ ~ +60℃；Working humidity:0% ~ 90% (non-condensing)
|
|
|
Storage temperature：-40℃ ~ +85℃；Storage humidity:0% ~ 90% (non-condensing)
|
|
OS
|
Windows10，Linux
|
|
Dimension
|
120x120mm
|
|
Weight
|
With heatsink 260g，without heatsink 130g
|
