Processor System
|

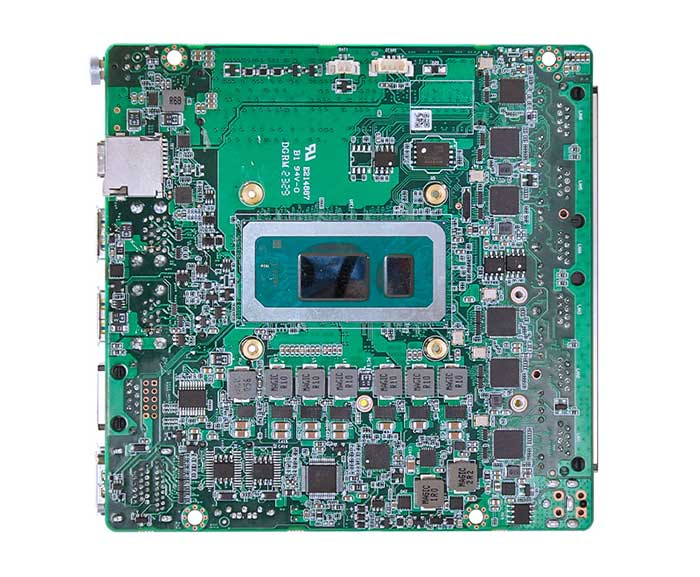

Onboard Intel 12th/13th-U/-P series processor, TDP 35W
|
|
|
EFI BIOS
|
|
Memory
|
2*DDR5 SO-DIMM, total max 64GB
|
|
Storage
|
2*M.2 M-Key 2280(NVMe PCIe 4.0 x4/SATA3.0 protocol), order notes
|
|
|
1*SATA3.0, 2Pin 5V power supply
|
|
Display
|
1*HDMI2.0, support 4096x2160@60Hz
|
|
|
1*DP, support 7680x4320@60Hz
|
|
|
1*Type-C port, support DP 7680x4320@60Hz和USB3.2 Gen2
|
|

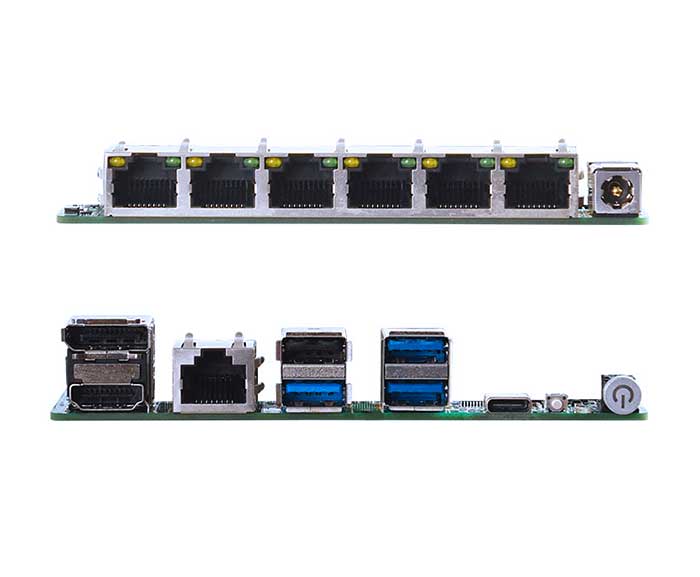

Board Side I/O Interface
|
Power on button, reset button, 3*USB3.0, 1*USB2.0
|
|
|
DC JACK, 1*HDMI, 1*DP, 1*Type-C (USB3.0+DP)
|
|
|
6*LAN, 1*Console (common LAY with RS232/485 pins), TF card
|
|
Expansion Interfaces/Features
|
External TPM2.0 is optional, not available by default. Default is CPU built-in TPM2.0
|
|
|
1*M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module)
|
|
|
1*RS232/RS485 (hardware loading and BIOS setting switching) row of pins, pitch 2.0mm
|
|
|
1*USB2.0 Pin, 2x5Pin, 2.0mm pitch; 8 bit GPIO Pin, 2.0mm pitch
|
|
|
1*4Pin PWM CPU FAN
|
|
Power Supply
|
DC 12-19V, 120W or above
|
|
Operating Environmen
|
Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90
|
|
|
Storage Temperature: -40℃ ~ +85℃; Storage Humidity: 5% ~ 90%
|
|
Operating System Support
|
Windows 10, Windows 11, Linux
|
|
Dimension
|
120x120 mm
|
|
Net Weight
|

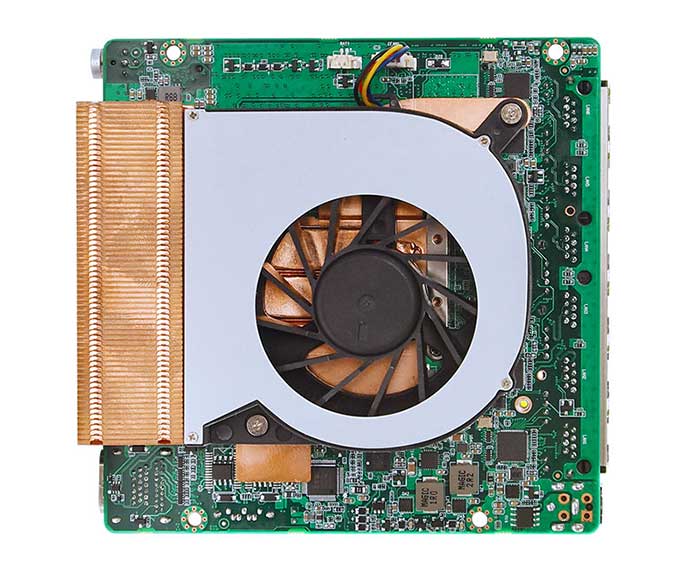

Approx. 130g without heat sink, 250g with heat sink
|
