Processor System
|

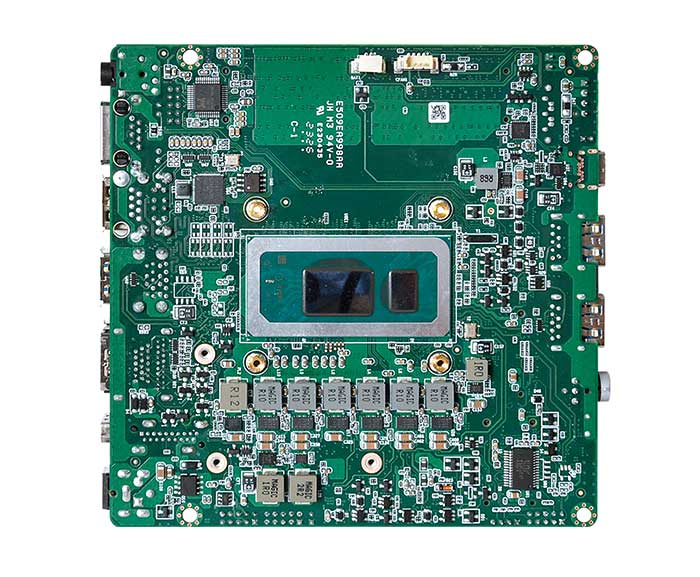

Onboard Intel Alder Lake-U/-P series processor, TDP 28W
|
|
|
EFI BIOS
|
|
Memory
|
2*DDR5 SO-DIMM, up to 64GB total
|
|
Storage
|
2*M.2 M-Key 2280(NVMe PCIe 4.0 x4/SATA3.0 protocol), order notes
|
|
|
1*SATA3.0 interface, 2Pin 5V power supply
|
|
Display
|
2*HD-MI2.0 interface, support 4096x2160@60Hz
|
|
|
1*DP, support 7680x4320@60Hz
|
|
|
Type-C interface, support DP 7680x4320@60Hz和USB3.2 Gen2
|
|

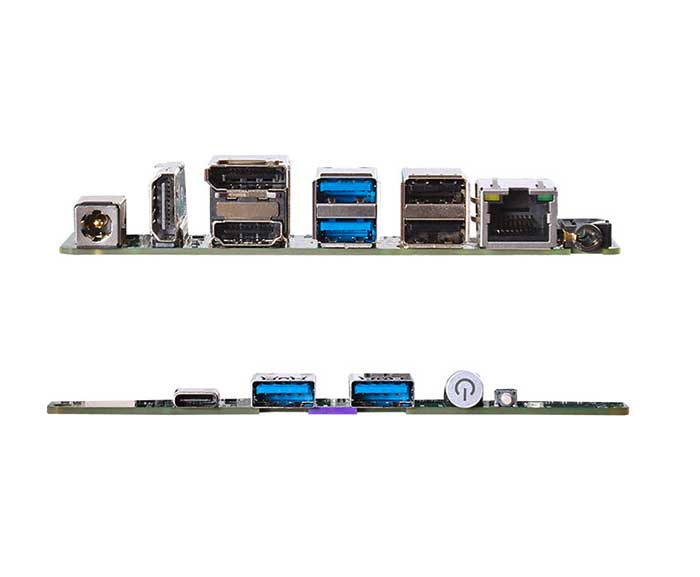

Board Side I/O Interface
|
Power on button, 2-in-1 audio jack, reset button, 4*USB3.0
|
|
|
DC JACK, 2*HD-MI, 1*DP, 1*Type-C
|
|
|
Single and dual-network optional: single-network, rear I/O more than 2 * USB2.0
|
|
Expansion Interfaces/Features
|
External TPM2.0 optional, not available by default. Default is CPU built-in TPM2.0.
|
|
|
1*M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module)
|
|
|
1*RS232/RS485 pin spacing 2.0mm
|
|
|
1*USB2.0 Pin, 2x5Pin, Pitch 2.0mm
|
|
|
1*4Pin PWM CPU FAN
|
|
Power Supply
|
DC 12-19V, 120W or above
|
|
Operating Environment
|
Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90
|
|
|
Storage Temperature: -40℃ ~ +85℃; Storage Humidity: 5% ~ 90%
|
|
Operating System Support
|
Windows 10, Windows 11, Linux
|
|
Dimension
|
120x120 mm
|
|
Net Weight
|

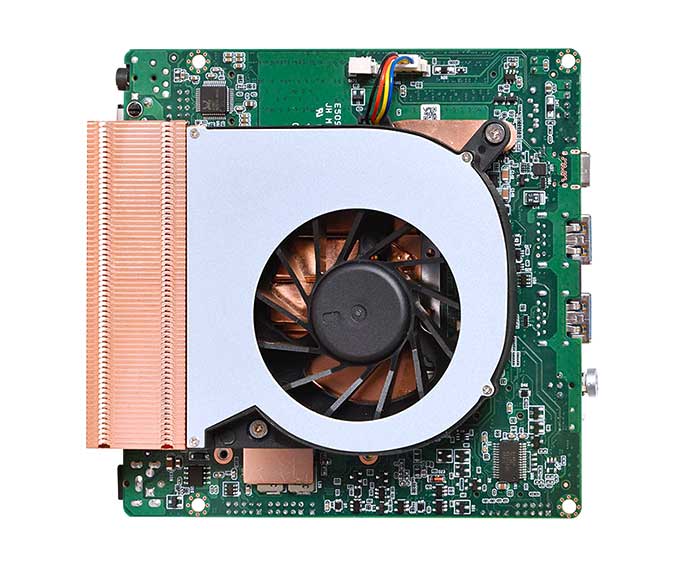

Approx. 130g without heat sink, 250g with heat sink
|
