Processor system
|
Onboard Intel Alder Lake-U/-P series processor
|
|
|
EFI BIOS
|
|
Memory
|
2* DDR 5 SO-DIMM , total maximum 64 GB
|
|
storage
|
1 *M.2 M-Key 2280 (NVMe PCIe 3.0 x4/SATA3.0 protocol)
|
|
|
1 * SATA 3.0 interface , 2Pin 5V power supply
|
|
show
|
2* HD-MI 2.0 interface , support 4096 x 2160@60H z
|
|
|
2*Type-C interface , support DP 7680 x 4320 @60H z and USB3.2 Gen2
|
|

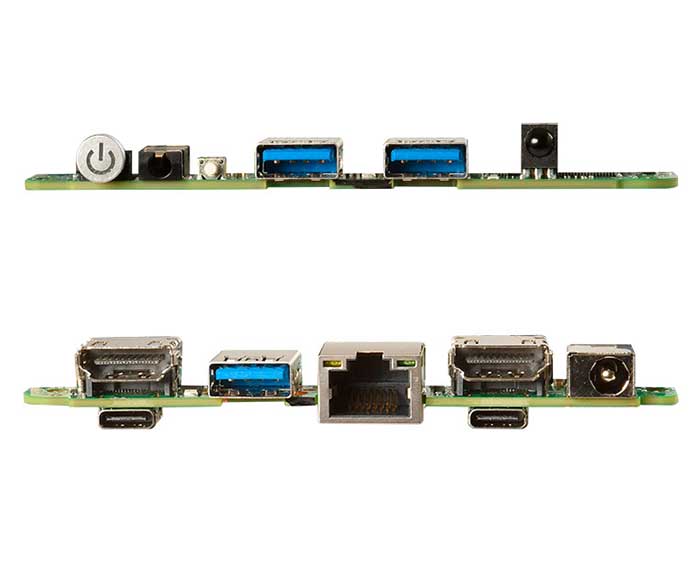

Board edge I/O interface
|
Power button, 2-in-1 audio jack, reset button, 2*USB3.2 Gen2
|
|
|
DC JACK, 2*HD-MI, 2*Type-C, 1*LAN
|
|
|
Single and dual network optional: single network, 1*USB3.2 on the rear I/O; dual network, 1*USB3.2 on the rear I/O
|
|
Expansion interface/function
|
External TPM2.0 is optional, not available by default. The default is CPU built-in TPM2.0
|
|
|
1 * M.2 E-Key ( PCIe+USB2.0 protocol, WIFI/BT module)
|
|
|
1*RS232 pin header, spacing 2.0mm
|
|
|
1*USB2.0 pin header, 2x5Pin, spacing 2.0mm
|
|
|
1*4Pin PWM CPU FAN
|
|
power supply
|
DC 12-19 V, 120W or more
|
|
Work Environment
|
Working temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90%
|
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90%
|
|
Operating System
|
Windows 10, Windows 11, Linux
|
|
size
|
1 00 x1 00 mm
|
|
net weight
|

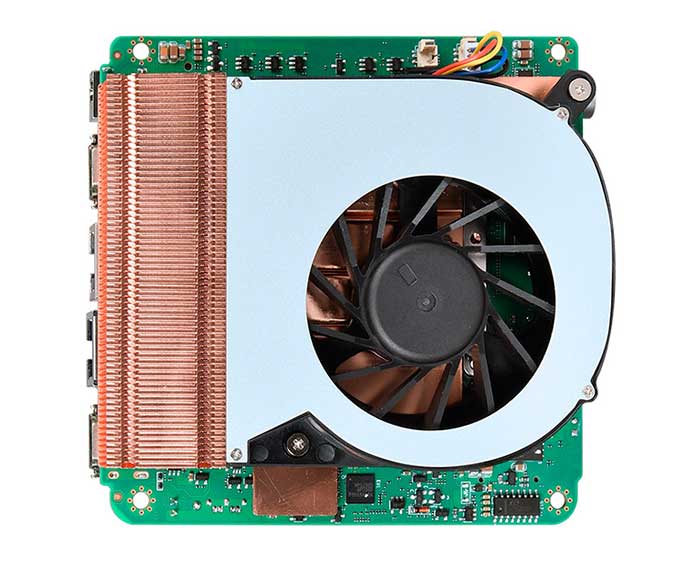

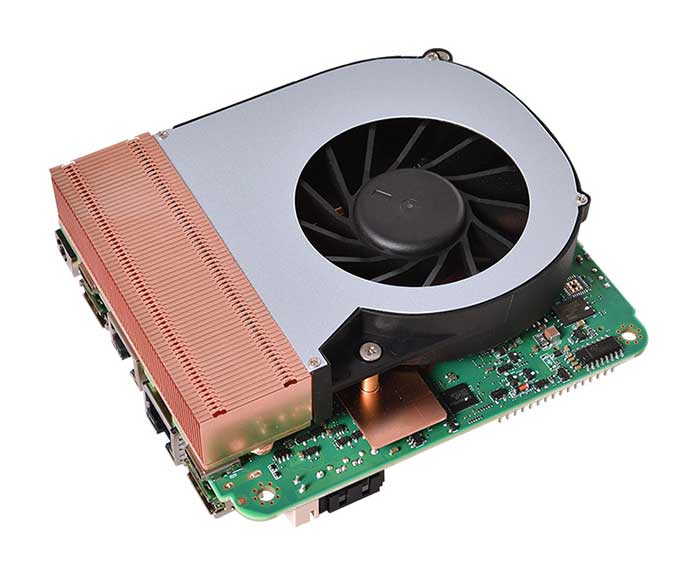

Without radiator, about 120 g ; with radiator, about 220 g
|
