Processor System
|

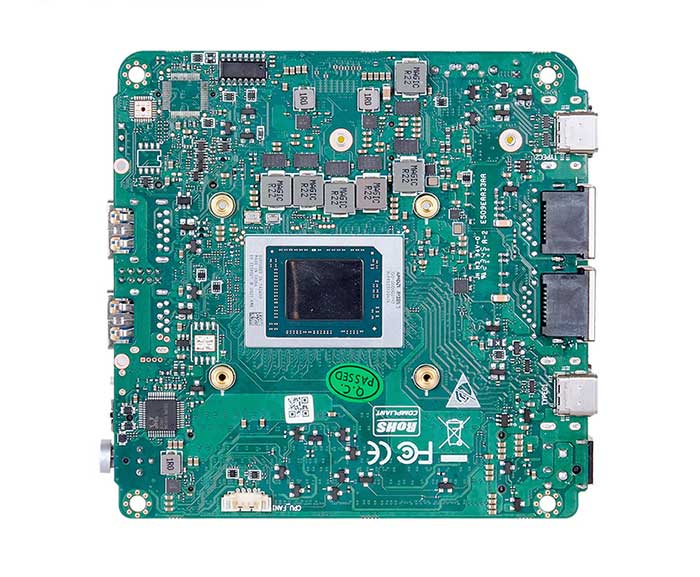

AMD RYZEN 6000/7000 series processor on board, TDP 35W
|
|
|
EFI BIOS
|
|
Memory
|
2*DDR5 SO-DIMM, total max. 64GB
|
|
Storage
|
1*M.2 M-Key 2280(NVMe PCIe 4.0 x4 protocol)
|
|
|
1*SATA3.0 port, 2Pin 5V power supply
|
|
Display
|
2*HDMI2.0 interface, support 4K@60Hz
|
|
|
2*Type-C interface, support DP 8K@60Hz和USB3.0
|
|

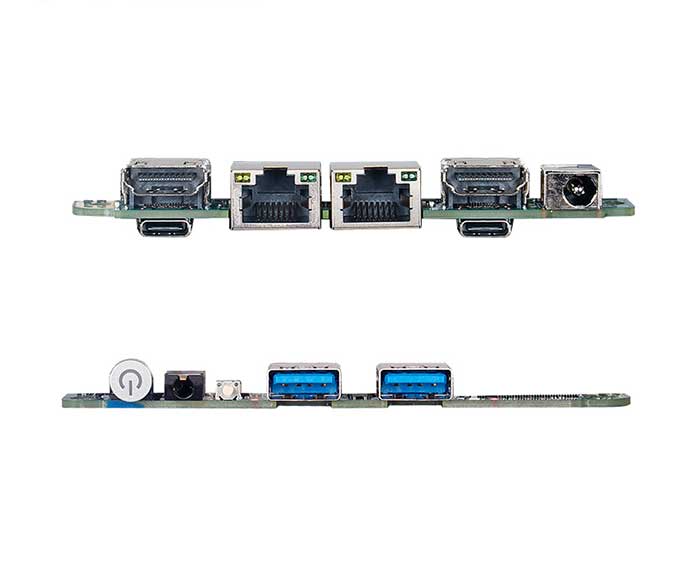

Board Side I/O Interface
|
Power on button, 2-in-1 audio jack, reset button, 2*USB3.0
|
|
|
DC JACK, 2*HDMI, 2*Type-C
|
|
|
Dual Network (RTL8125B)
|
|
Expansion Interfaces/Features
|
External TPM2.0 optional, not available by default. Default is CPU built-in TPM2.0
|
|
|
1*M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module)
|
|
|
1*RS232 pin, pitch 2.0mm
|
|
|
1*USB2.0 Pin, 2x5Pin, 2.0mm pitch
|
|
|
1*4Pin PWM CPU FAN
|
|
|
1*FPC (PCIe4.0 4x)
|
|
|
1*CIR (not available by default, reserved function, software debugging required)
|
|
Power Supply
|
DC 12-19V, 90W and above
|
|
Operating Environment
|
Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90
|
|
|
Storage Temperature: -40°C ~ +85°C; Storage Humidity: 5% ~ 90%
|
|
Operating System
|
Windows 10, Windows 11, Linux
|
|
Dimension
|
100x100 mm
|
|
Net Weight
|
Approx. 120g without heat sink, approx. 220g with heat sink
|
