Model
|
N-BOX-S3
|
|
Size
|
Machine size: 178 x 121 x 55mm
|
|
Material
|
All-aluminum, fanless and cable-free design
|
|
Color
|
Iron Gray
|
|
Processor support
|
Support Alder Lake-N series processors
|
|
Network card
|
6 x Intel 2.5G networks, POE optional
|
|
Memory
|
1 x DDR5 SO-DIMM, total maximum 16GB
|
|
Storage
|
1 x SATA3.0, supports 2.5-inch HDD
|
|
|
1 x M.2 2280 SATA
|
|
Other
|
E-Key WIFI/BT and B-Key 4G/5G modules optional, external antenna
|
|
|
TPM2.0 optional
|
|

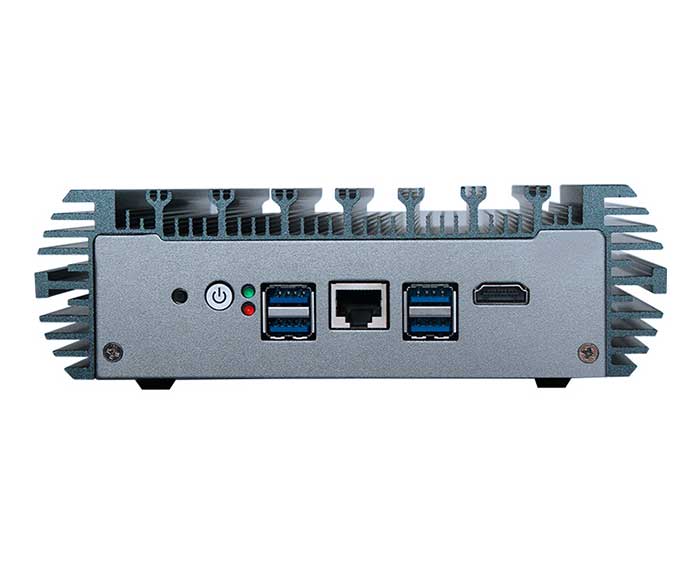

I/o interface
|
1 x switch button; 1 x reset button; 1 x hard disk indicator light; 1 x power indicator light
|
|
|

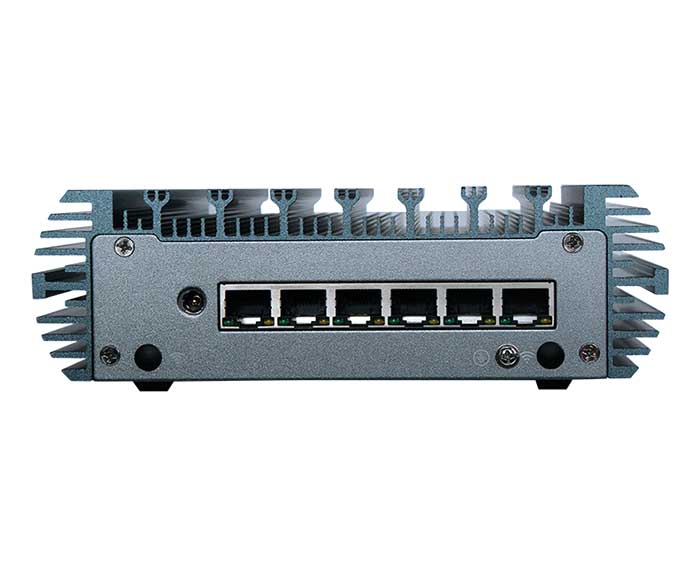

6 x RJ45 network ports
|
|
|
1 x HDMI port
|
|
|
1 x DC power port
|
|
|
4 x USB 3.0 ports
|
|
|
1 x RS232 RJ45 interface
|
|
|
2 x antenna ports
|
|
Power supply
|
DC 12-19V, 60W
|
|
OS support
|
Windows10, Windows11, Linux, etc.
|
|
Unit weight
|
Net weight: about 1150g
|
