CPU
|
CPU
|
With Baytrail-D/I/M serial Processor
|
|
|
CPU package
|
BGA
|
|
|
Chipset
|
Baytrail-D/I/M serial Processor
|
|
|
BIOS
|
EFI BIOS
|
|
Memory
|
Technology Architecture
|
Single channel DDR3L 1066/1333MHz
|
|
|
capacity
|
Max support 8GB DDR3L memory
|
|
|
Socket
|
DDR3 SODIMM 204 Socket
|
|
Video
|
Graphics controller
|
Intel HD Graphics
|
|
|
HDMI
|
HDMImax support resolution 1920x1080
|
|

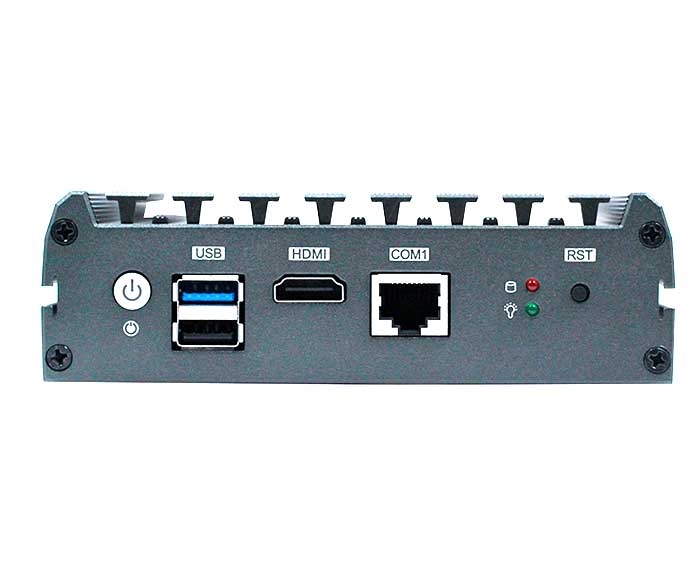

I/O backpanel
|
Ports
|
1*HDMI
1*USB3.0
1*USB2.0

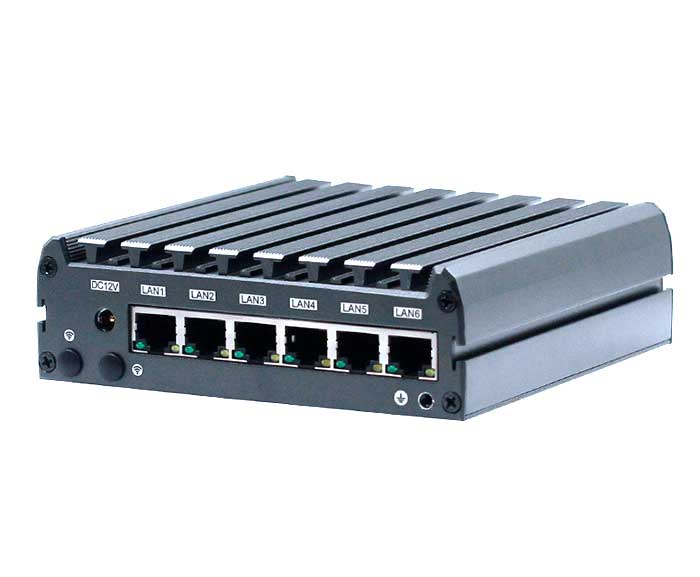

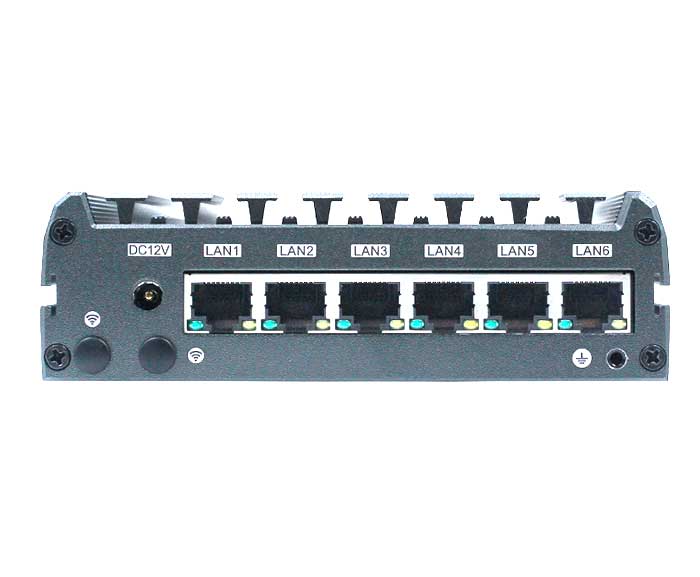

6*LAN
1*Quick start button with indicator
1*Reset button
1*DC 1*Power indicator
1*Hard disk indicator
|
|
Internet
|
controller
|
6*Intel I211ATOr Intel I210 Gigabit LAN (optional)
|
|
Input or output interface
|
USB
|
1*USB2.0 1*USB3.0 max support+5V/1A
|
|
|
Com
|
1*RJ45 Port RS232 or RS485(optional)
|
|
Expansion bus
|
Mini-PCle
|
1*Mini-PCIe, support PCIE and USB protocol signal equipment
|
|
storage
|
SATA
|
1*standard SATA3 Port, max transmission rate 6Gb/s
|
|
|
M-SATA
|
1*Mini-PCIe M-SATA Scoket, support SANDISK protocol，max transmission rate 6gb/s
|
|
|
EMMC
|
Support 32/64/128G (optional)
|
|
power supply
|
Power type
|
Single input DC power supply, DC12-19V, +/- 5%
|
|
working environment
|
Operating temperature
|
-20℃ ~ +60℃
|
|
|
storage temperature
|
-40℃ ~ +85℃
|
|
|
Working humidity
|
0% ~ 90% relative humidity, no condensation
|
|
|
Storage humidity
|
0% ~ 90% relative humidity, no condensation
|
|
System support
|
|
Windows7 Windows10 Linux Android
|
|
Measurement
|
size
|
134*126*40.6 mm
|
|
|
weight
|
0.5KG
|
|
Certifications
|
|
CE,ROHS,FCC
|
