Material and color
|

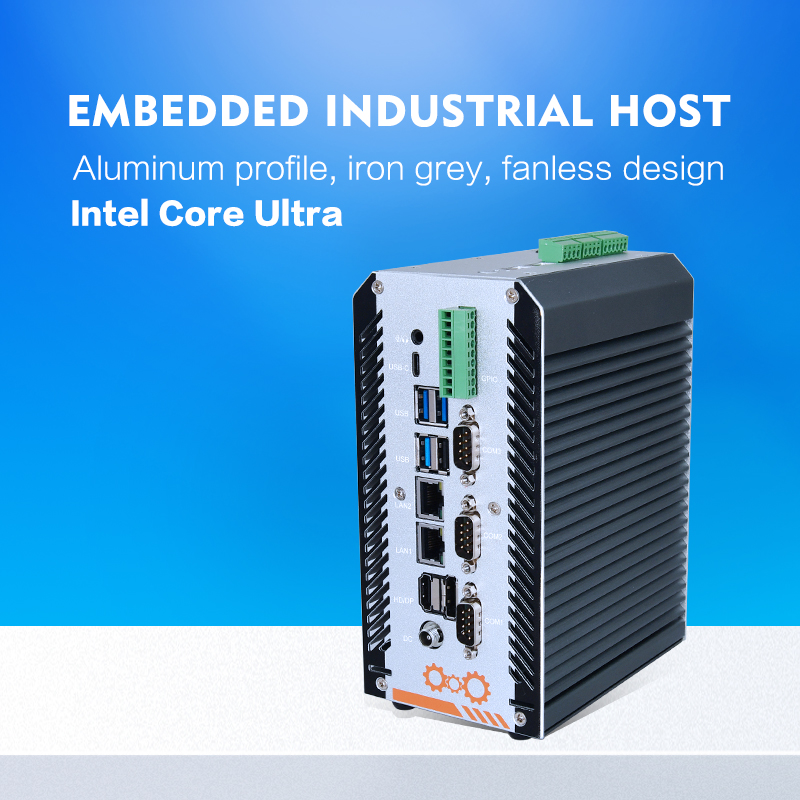

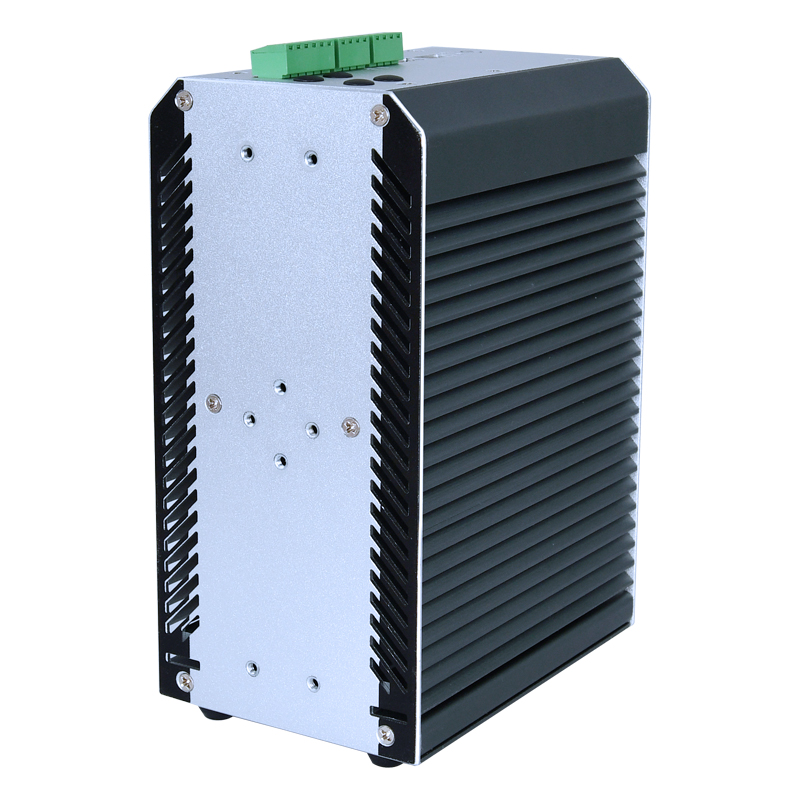

Aluminum profile, iron grey, fanless design
|
|
Installation
|
Desktop foot pad type (default), 35mm industrial rail type, wall-mounted
|
|
Processor system
|
Onboard Intel Core 12th/13th generation -U /-P series processor, TDP 28W
|
|
|
UEFI BIOS
|
|
Memory
|
2 x DDR 5SO-DIMM, total maximum 64GB
|
|
Storage
|
1 x M.2 M-Key 2280 (PCIe 3.0 x 2 and SATA3.0, hardware option)
|
|
Display
|
1 x HDMI2.0, 1 x Mini DP, 1 x Type-C (DP+USB3.0)
|
|

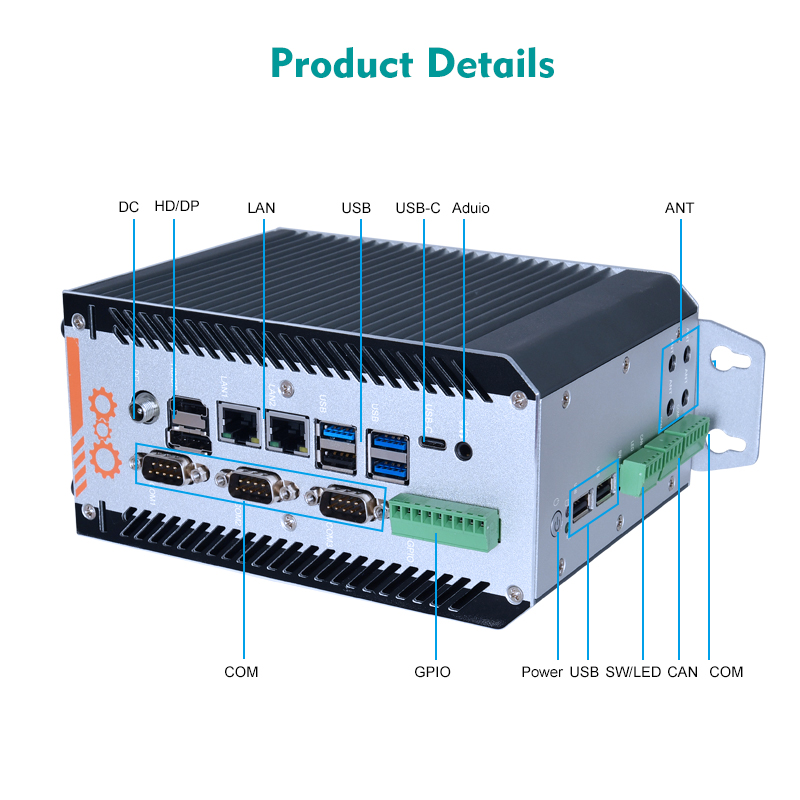

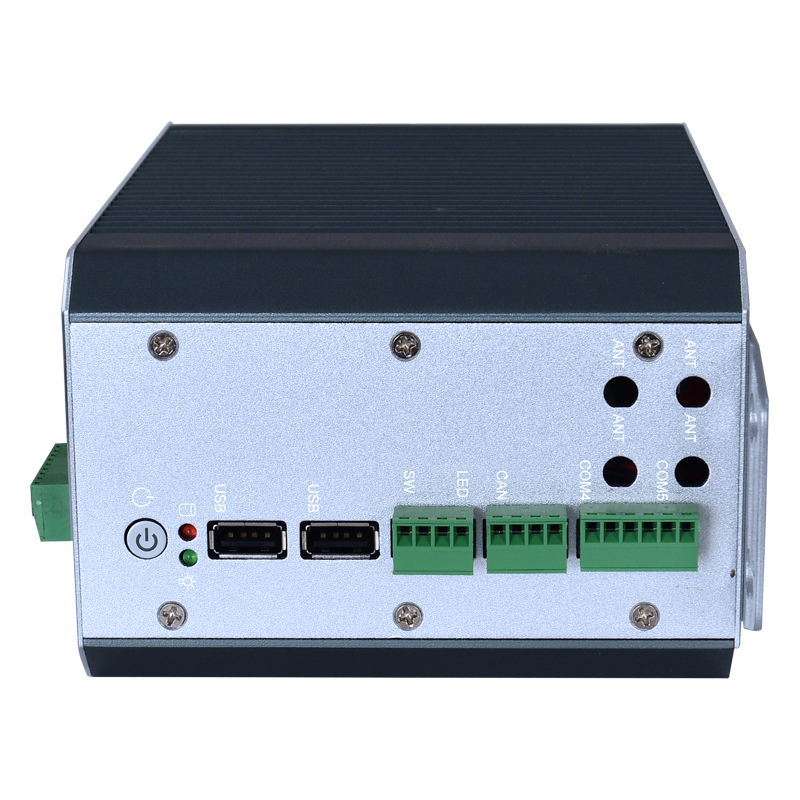

Chassis I/O interface
|

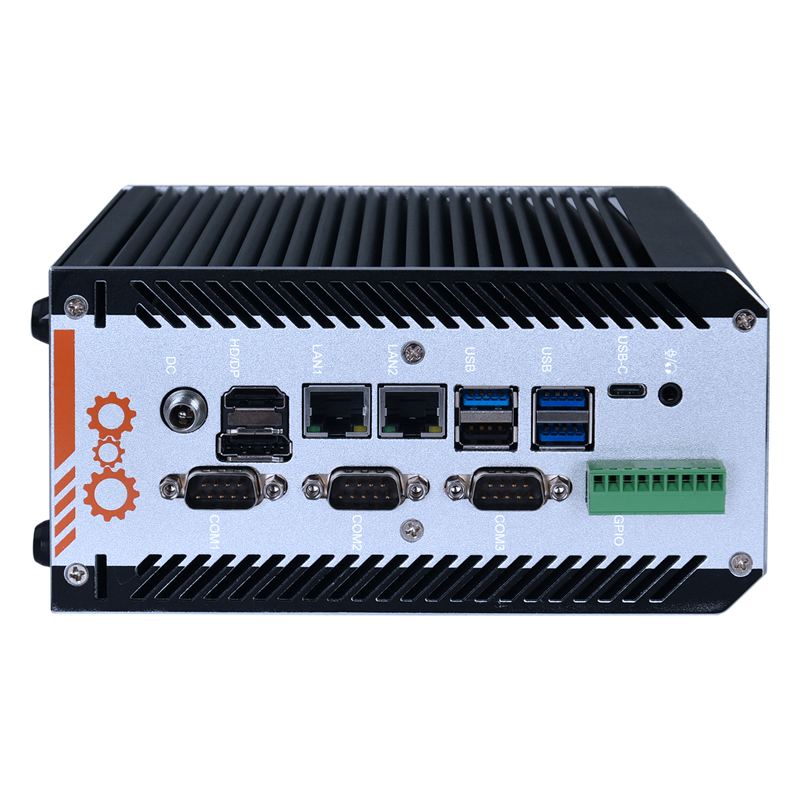

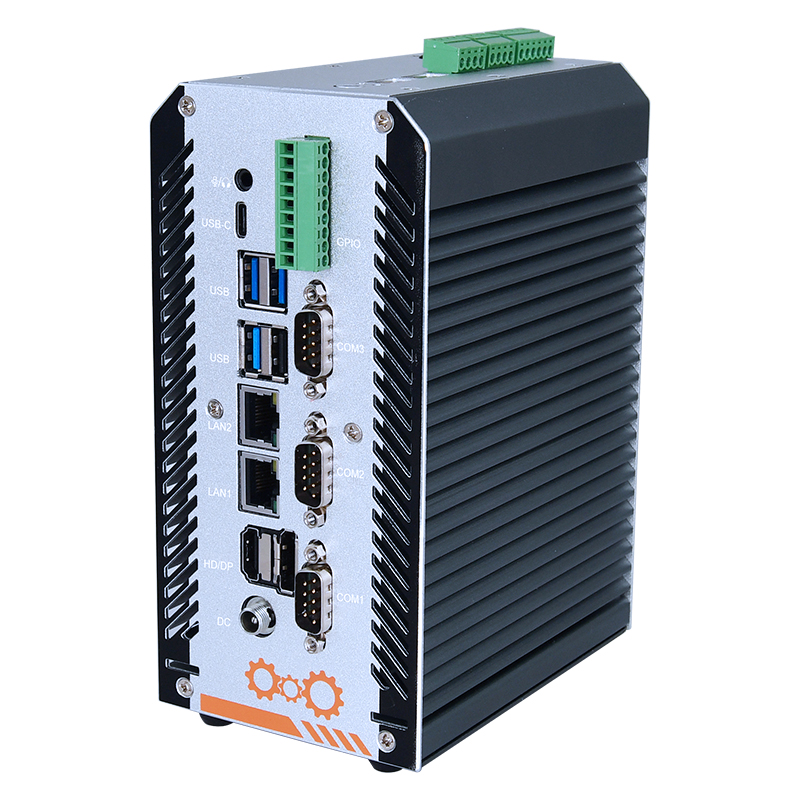

DC Phoenix terminal, 2 x LAN, 1 x HDMI, 1 x Mini DP, 1 x Type-C
|
|
|
7 x USB, 1 x DB9 RS422/485 (COM3, BIOS), 3 x DB9 RS232 (COM1/2/4)
|
|
|
Switch button, 4 x ANT holes, 8bit GPIO, 1 x Audio two-in-one
|
|
Expansion interface/function
|
External TPM2.0 optional
|
|
|
1 x E-Key (PCIe+USB2.0, WIFI/BT)
|
|
|
1 x B-Key (USB3.0 +USB2.0, 4G/5G)
|
|
Power Supply
|
DC 9-36V, 120W
|
|
Working Environment
|
Working temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90%
|
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90%
|
|
Operating System
|
Windows 10, Windows 11, Linux
|
|
Size
|
174x129x86 mm (without bracket)
|
|
Gross Weight
|
About 4Kg
|
