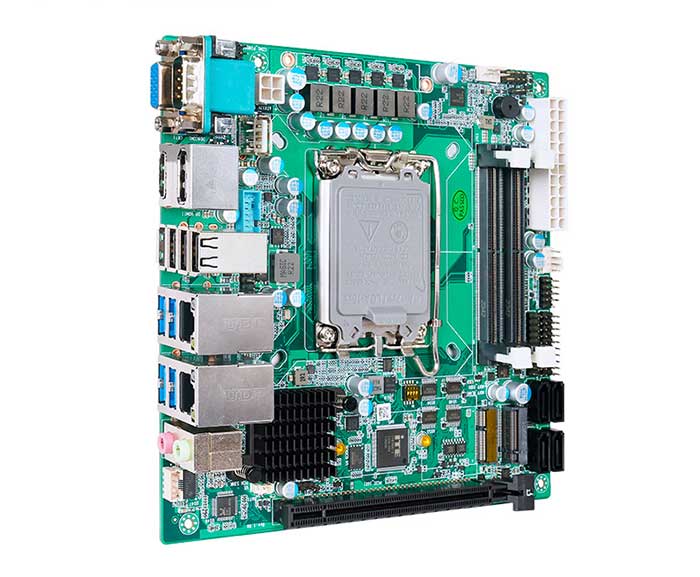

Processor system
|
Intel 12th Gen Alder Lake-S/13th Gen Raptor Lake-S Series , LGA1700, TDP 65W
|
|
|
EFI BIOS
|
|
Memory
|
2 x DDR5 SO-DIMM maximum 64GB (12th Gen, maximum 4800MHz;13th Gen, maximum 5600MHz)
|
|
Storage
|
1 x M.2 M-Key 2280(NVMe PCIe3.0_x4 protocol)
|
|
|
4 x SATA3.0(For H610, no RAID; For B660/H670, it’s RAID 0/1/5/10)
|
|
Display
|
1 x HDMI2.0, support 4K@60Hz
|
|
|
1 x DP1.4, support 4K@60Hz
|
|
|
1 x VGA
|
|

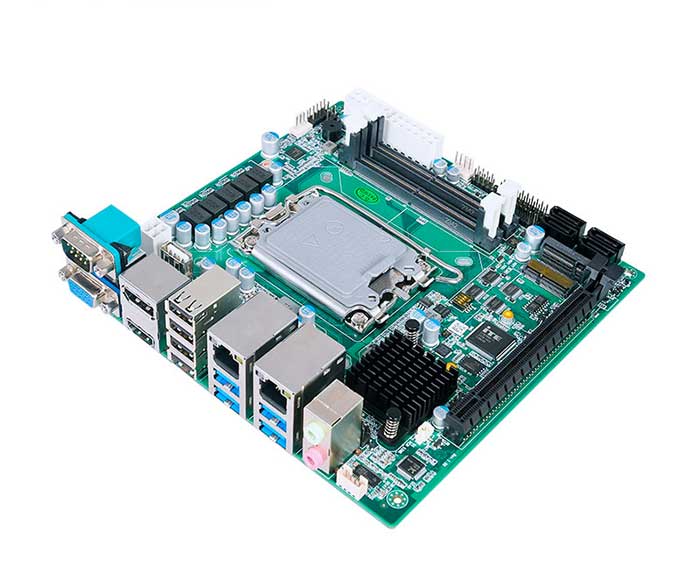

Board Edge I/O interface
|
DB9 COM1 (RS232, 5V/12V output selected by jumping cap), VGA, HDMI, DP
|
|
|
4 x USB2.0
|
|
|
2 x (LAN + 2 x USB3.2), 2-hole audio input and output (Line_out, Mic_in)
|
|

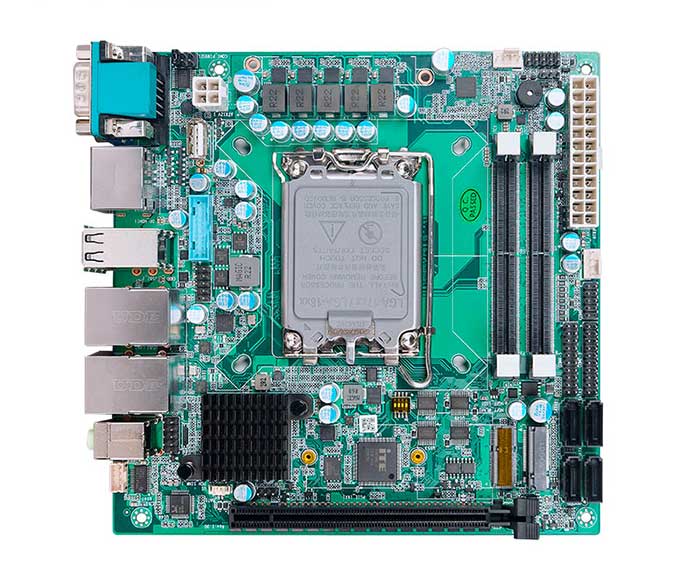

Extended interface/function
|
TPM2.0 optional, not available by default
|
|
|
1 x PCIe_X16(PCIe4.0_16x protocol)
|
|
|
1 x M.2 E-Key (PCIe3.0+USB2.0 protocol, support WIFI/BT module)
|
|
|
5 x COM Pin header , 2x5Pin, pitch 2.54m; COM2 can be selected to RS422/485 by jumper; COM3/4/5/6 are RS232
|
|
|
2 x USB3.0 pin header(1 set), pitch 2.0mm (H610, this function is not available; only available for B660 and advanced bridge chips)
|
|
|
2 x USB2.0 pin header(1 set), pitch 2.54mm; 1 x built-in vertical USB2.0
|
|
|
1 x 4Pin PWM CPU Fan, 1 x 4Pin System fan
|
|
Power Supply
|
ATX 24 + 4 Pin, 200W and above (determined by the actual use environment)
|
|
Working Environment
|
Operating temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90%
|
|
|
Storage temperature: -40℃ ~ +85℃; storage humidity: 5% ~ 90%
|
|
Operating System
|
Windows10, Windows11, Linux
|
|

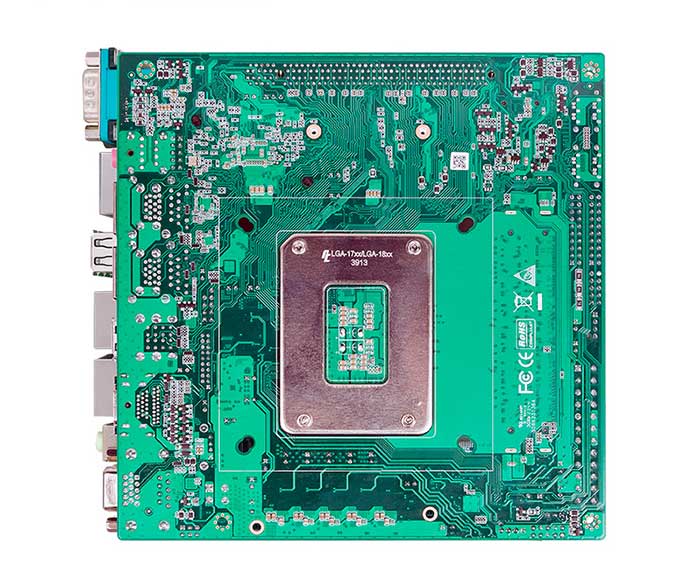

Size
|
170x170 mm
|
|
Weight
|
About 400g
|
