Processor system
|
Intel 12th generation Alder Lake-S series/13th generation Raptor Lake-S series, LGA1700, TDP 65W
|
|
|
EFI BIOS
|
|
Memory
|
2*DDR5 SO-DIMM 4800MHz, up to 64GB
|
|
Storage
|
1*M.2 M-Key 2280 (NVMe PCIe4.0_x4 default / optional SATA3.0 protocol) storage interface
|
|
|
2*SATA3.0 interface
|
|
Display
|
2*HDMI2.1 interface, support 4096x2160@60Hz
|
|
|
2*DP1.4, support 7680x4320@60Hz
|
|
|
eDP/LVDS
|
|

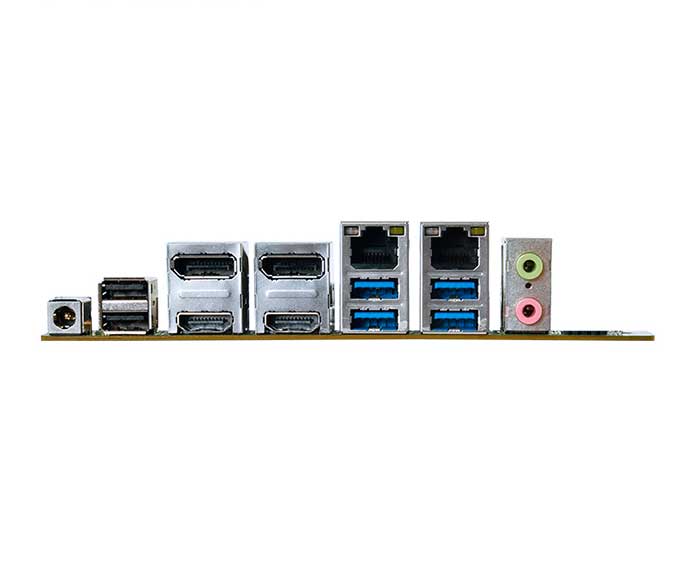

Board edge I/O interface
|
DC JACK, 2*USB2.0
|
|
|
2*HDMI/DP
|
|
|
2*(LAN + 2*USB3.2), 2-hole audio input and output
|
|
Extended Interface/Function
|
TPM2.0 optional, N/A by default
|
|
|
1*PCIe_X16 (PCIe4.0_16x protocol)
|
|
|
1*M.2 E-Key (PCIe3.0/USB2.0 protocol, support WIFI/BT module)
|
|
|
4*COM pin header, 2x5Pin, pitch 2.54m; COM1/2 can choose RS232/485, COM3/4 can be RS232
|
|
|
2 groups of 4 USB2.0 pin headers, with a pitch of 2.54mm (one USB2.0 and BT share LAY)
|
|
|
8*GPIO header, 2x5Pin, pitch 2.54mm
|
|
|
1*4Pin PWM CPU fan, 1*4Pin system fan
|
|
Power Supply
|
DC 12-24V, above 120W
|
|
Working Environment
|
Working temperature: -20℃ ~ +60℃; Working humidity: 5% ~ 90%
|
|
|
Storage temperature: -40℃ ~ +85℃; storage humidity: 5% ~ 90%
|
|
Operating System
|
Windows10, Windows11, Linux
|
|
Size
|
170x170mm
|
|
weight
|
about 400g
|
