Processor system
|
Onboard Intel Elkhart Lake series processor
|
|
|
EFI BIOS
|
|
Memory
|
2 DDR4 SO-DIMMs, maximum 32GB
|
|
storage
|
One M.2 M-Key 2280 (NVMe PCIe 3.0 x4/SATA3.0 protocol) storage interface
|
|
|
1 SATA3.0 interface, 2Pin power supply
|
|
display
|
1 HDMI2.0 interface, supporting 4096x2160@60Hz
|
|
|
1 DP1.4 interface, supporting 4096x2160@60Hz
|
|
|
LVDS/eDP
|
|

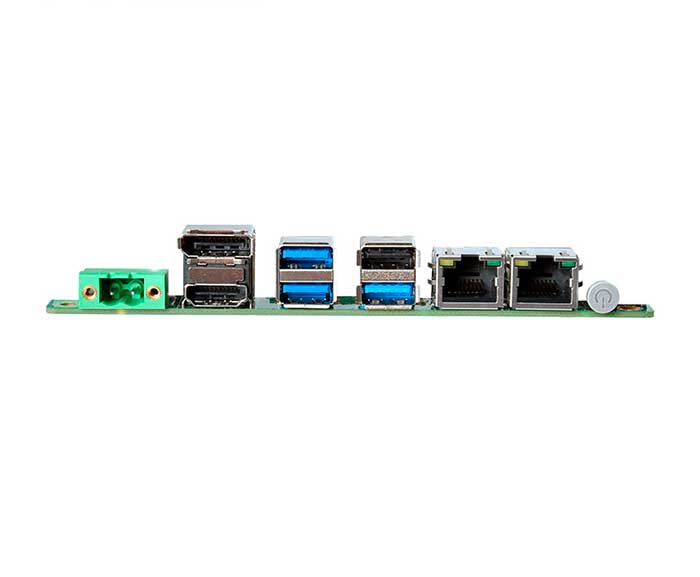

Board side I/O interface
|
2Pin through-wall terminal, HDMI, DP, power-on button
|
|
|
4 USB, 2 RJ45. (6 USB for single network)
|
|
Expansion interface/function
|
TPM2.0 is optional, but not by default
|
|
|
One M.2 E-Key (PCIe+USB2.0 protocol, supporting WIFI module)
|
|
\
|
One M.2 B-Key (USB2.0/USB3.0 protocol, supporting 4G/5G module); 1 Micro SIM card slot
|
|
|
6 COM row pins, 2x5Pin, spacing 2.0mm
|
|
|
2 sets of 4 USB2.0 rows of pins, 2x5Pin, spacing 2.0mm
|
|
|
1 set of 8-bit GPIO pin, 2x5Pin, spacing 2.0mm
|
|
|
1*3Pin SYS FAN，1*3Pin CPU FAN
|
|
Power Supply
|
DC 9-36V，30W
|
|
work environment
|
Working temperature: - 20 ℃~+60 ℃; Working humidity: 5%~90%
|
|
|
Storage temperature: - 40 ℃~+85 ℃; Storage humidity: 5%~90%
|
|
Operating system support
|
Windows10，Windows11，Linux
|
|
size
|
146x102mm
|
|
Net weight
|

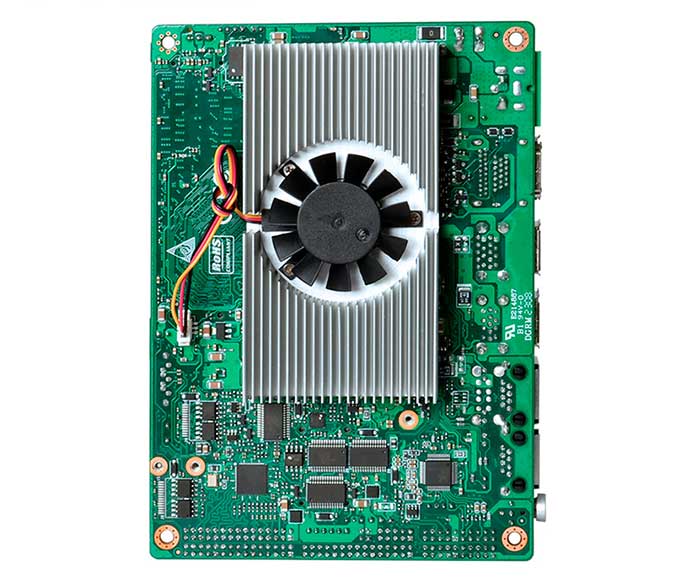

About 120g without radiator, about 200g with radiator
|
