Processor
|
Intel 12th generation Alder Lake -N series Processors;
|
|
|
EFI BIOS
|
|
Memory
|
1 x DDR5 4800MT/ s SO-DIMM memory slot, up to 16GB
|
|
Display
|
1 x HDMI 2.1; 1 x 24-bit LVDS (LVDS/eDP alternative); 1 x DP1.4;
|
|
Storage
|
1 x M.2 KEY-M 2280 (PCIe_X 2 NVMe)
|
|
|
1 x 7Pin SATA3.0, SATA power supply 5V 2Pin
|
|

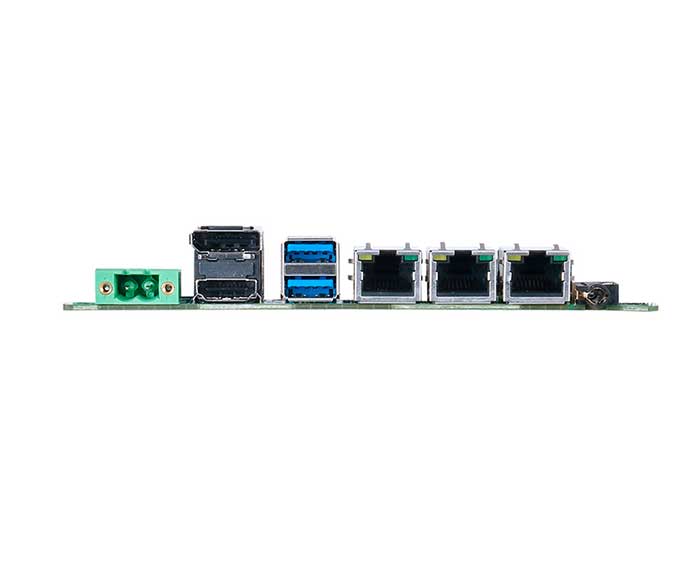

Board edge I/O interface
|
1 x DC interface, 1 x DP 1.4, 1 x HDMI 2.1, 2 x USB3, 3 x RJ45 network ports (3 x i226- V, LAN2, LAN3 support POE power supply, 15W), 1 x two-in-one audio;
|
|
Extended interface/function
|
1 x TPM2.0 (chip optional, not included by default)
|
|
|
1 x M.2 KEY-B (PCIe+USB3.0, 4G/5G module), 1 x SIM card slot
|
|
|
1 x M.2 KEY-E (PCIE_X1, USB2.0)
|
|
|
1 x CAN+I2C 2x3PIN, pitch 2.0
|
|
|
6 x COMs, 2 x 5Pin, pitch 2.0 (COM1 and COM2 default to RS232, RS485/RS422 can be selected through BIOS, and the other 4 x RS232)
|
|
|
1 x SPK, 1x4Pin pitch PH2.0
|
|
|
1 x CL_CMOS, 1x2Pin, pitch 2.0
|
|
|
2 x USB2.0 pin headers, 2x5Pin, pitch 2.0
|
|
|
1 x CPU Smart FAN, 4Pin; 1 x system fan, 3Pin, pitch 2.54
|
|
|
1 x F_Panel, 2x5 Pin, pitch 2.0mm
|
|
|
1 x 8-bit GPIO pin, 2x5Pin, pitch 2.0mm
|
|
|
1 x AT/ATX, 1x2Pin, pitch 2.0
|
|
Power Supply
|
DC9-36V, wide voltage
|
|
Working Environment
|
Working temperature: -20℃ ~ +60℃;
Working humidity: 0% ~ 90% relative humidity, no condensation
|
|
|
Storage temperature: -40℃ ~ +85℃;
Storage humidity: 0% ~ 90% relative humidity, no condensation
|
|
Operating System
|
Windows10, windows11, Linux
|
|
Size
|
146 x 102 mm
|
|
Weight
|

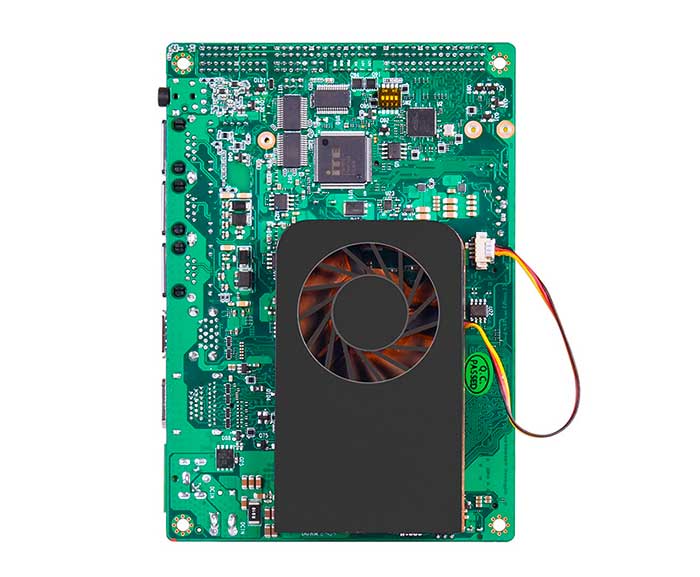

Excluding radiator 160g;
|
