Processor system
|
CPU
|
Onboard Intel 6th/ 7th /8th series processor, Core i3/i5/i7 CPU
|
|
|
CPU package
|
BGA
|
|
|
chipset
|
Intel® Kaby lake-U series SOC
|
|
|
BIOS
|
EFI BIOS
|
|
internal storage
|
Technical architecture
|
single channel DDR4 2133Mhz；
|
|
|
memory
|
integration 2GB/4GB/8G DDR4
|
|
|
slot
|
Add 1 slot, up to 16GB of memory
|
|
video frequency
|
graphics controller
|
Intel HD Graphics 620(I3-7100U Graphics card）；Graphics card model is related to CPU
|
|
|
Dual LVDS and EDP
|
Support dual channel 24 bit output, maximum resolution 1920 x 1200 EDP maximum resolution support 4096U 2304 (only one option)
|
|
|
VGA
|
VGA Support maximum resolution 2048x1536
|
|
|
HDMI
|
Maximum resolution support（HDMI1.4）4096*2304@30HZ Support for 4K display
|
|
|
Dual display support
|
LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display
|
|
|
Three display
|
Support LVDS VGA HDMI three-screen synchronous or asynchronous display
|
|

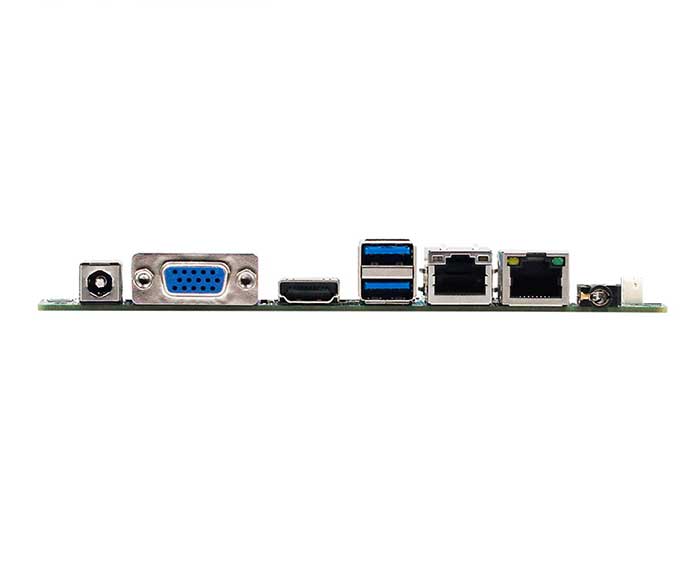

I/Orear panel
|
port
|
1*VGA,1*HDMI,2*LAN,2*USB3.0/1*MIC-OUT/LINE-OUT
|
|
network
|
controller
|
1*Intel I211AT and 1*Intel I219VGigabit Ethernet（When the I / O interface is 4 USB, there's only one Intel I211AT card.）
|
|
audio frequency
|
controller
|
HD ALC662 audio decoding (left and right channel + microphone)
|
|
Super I/O
|
controller
|
ITE8786E
|
|
Hardware monitoring
|
Watchdog timer
|
0 - 255 seconds to provide watchdog routines
|
|
|
Cooler
|
Aluminum with fan radiator (support automatic and manual fan speed adjustment)
|
|
Input / output interface
|
USB
|
2*USB3.0 is compatible with USB2.0 / 1.1 / 4*USB2.0, with maximum support of 5V / 1.5A
|
|
|
COM
|
5 RS-232, 1 RS422 / 485 optional RS485 supports automatic flow control
|
|
|
PS/2
|
1*PS/2 Pin interface
|
|
|
touch screen
|
Support for touch-screen 4wire 5wire 8 wire8 (optional)
|
|
|
GPIO
|
8-bit, providing routines, freely defined input / output 3.3V @ 24mA level
|
|
Extended bus
|
Mini-PCle
|
2 Mini-PCIe slots supporting PCIe and USB devices
|
|
memory
|
SATA
|
1 standard SATAIII interface with maximum transmission rate of 6GB / s
|
|
|
Onboard SSD
|
Onboard SSD 16/32/64/128G optional
|
|
|
M-SATA
|
1 Mini-PCIe M-SATA Scoket.Supports SANDISK protocol, maximum transfer rate 6gb/s
|
|
source
|
Power supply type
|
Wide voltage 8-36V input
|
|
|
Power consumption
|
35W
|
|
work environment
|
working temperature
|
-20℃ ~ +60℃
|
|
|
Storage temperature
|
-40℃ ~ +85℃
|
|
|
Working humidity
|
0% ~ 90% relative humidity, no condensation
|
|
|
Storage humidity
|
0% ~ 90% relative humidity, no condensation
|
|
Appearance dimension
|
size
|
154.8 x 117.4 mm
|
|
|
weight
|
0.5KG
|
|
attestation
|
|
CE,ROSH,FCC
|
