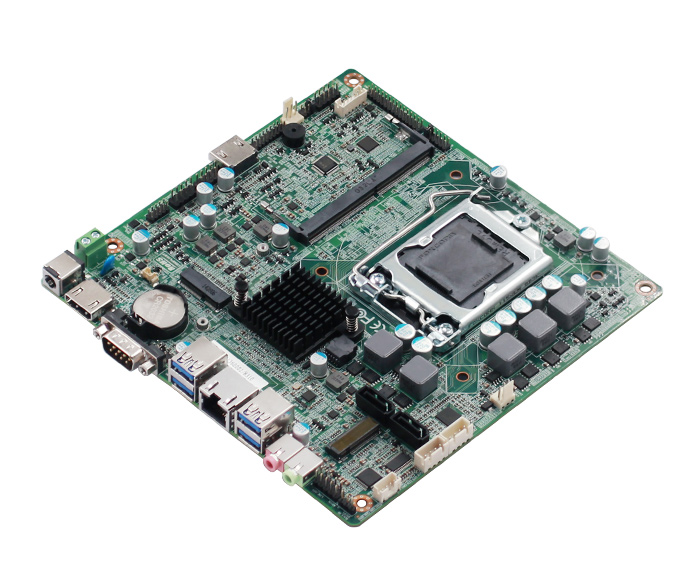

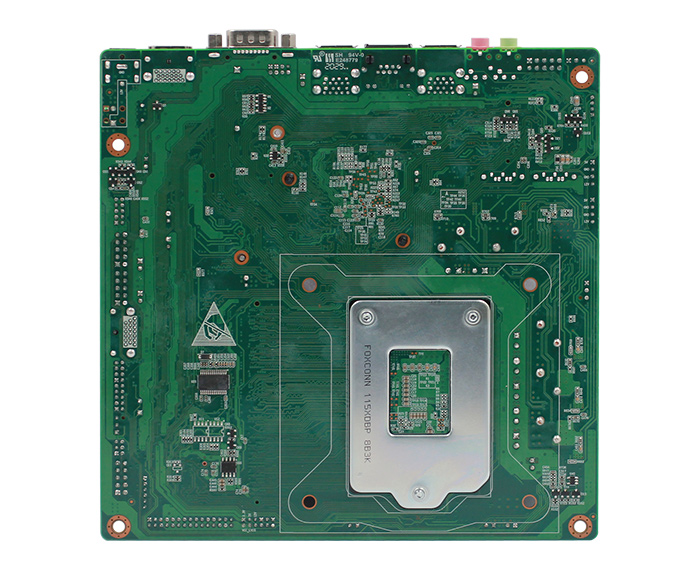

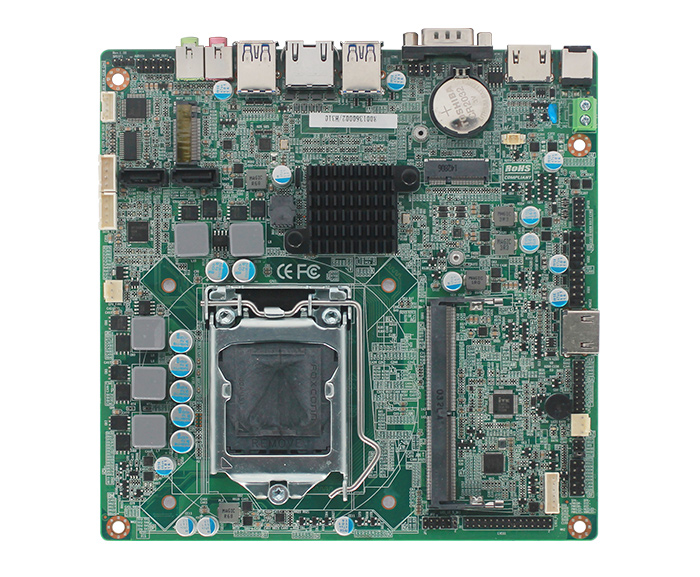

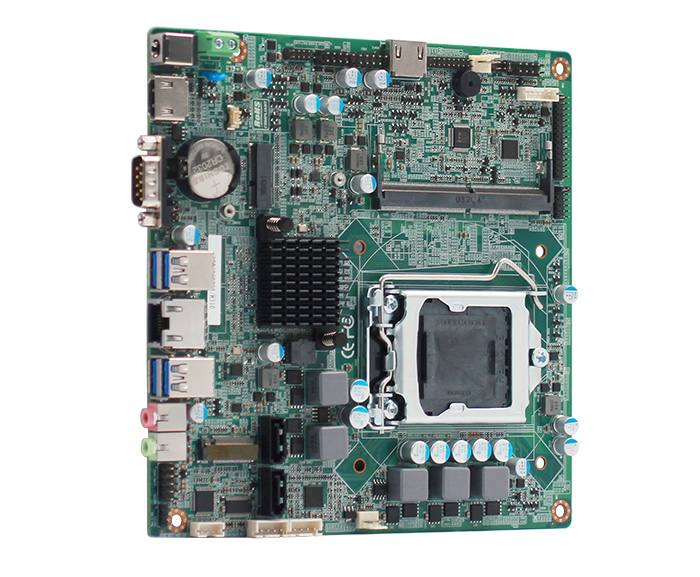

◆ Adopt Intel 8/9th genneration Core,Pentium,Celeron,serial processor;
◆ 1*DDR4 SO DIMM 260 Socket,MAX 32G；

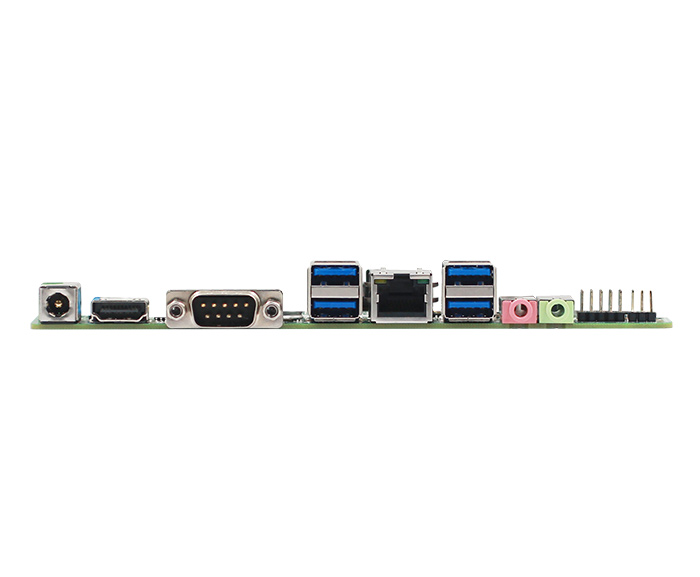

◆ 2*HDMI,1*DB9 COM,1*LVDS/EDP（EDP OR LVDS optional)；
◆ Onboard dual-channel power amplifier, each channel supports 6W 8Ω speaker；
◆ 1*Realtek RTL8111H 10M/100M/1000M adaptive network card；
◆ 1*DB9 COM,support RS232 or 1*RS485 plug pin(Function selection by jumper)；
◆ 1*KEY-Msocket,support M KEY 2240/2260/2280 NVMe protocol or SATA SSD
◆ 1*KEY-E socket,support E KEY 2230 WIFI,support CNVi protocol；
◆ DC 12V power supply (95W CPU matches with≥180W power supply，65W CPUmatches with ≥120Wpower supply）；
◆ Size170 x 170 mm；
