Processor System
|

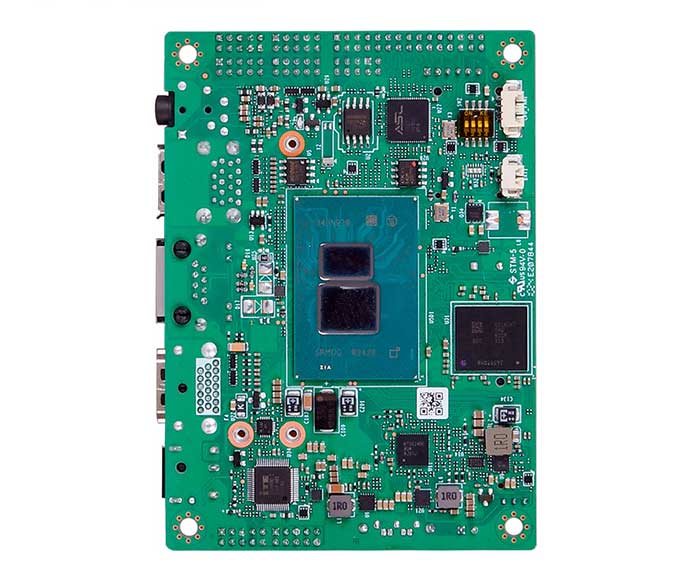

Onboard Intel Alder Lake-N series processor, with or without fan
|
|
|
EFI BIOS
|
|
Memory
|
Board-mounted LPDDR5 memory slot, up to 16GB
|
|
Storage
|
M-Key 2242, PCIe4.0 x2 protocol
|
|
|
1 x SATA3.0, 2Pin power supply
|
|
Display
|
1 x HDMI2.0, 4K @60Hz
|
|
|
1 x LVDS/EDP
|
|

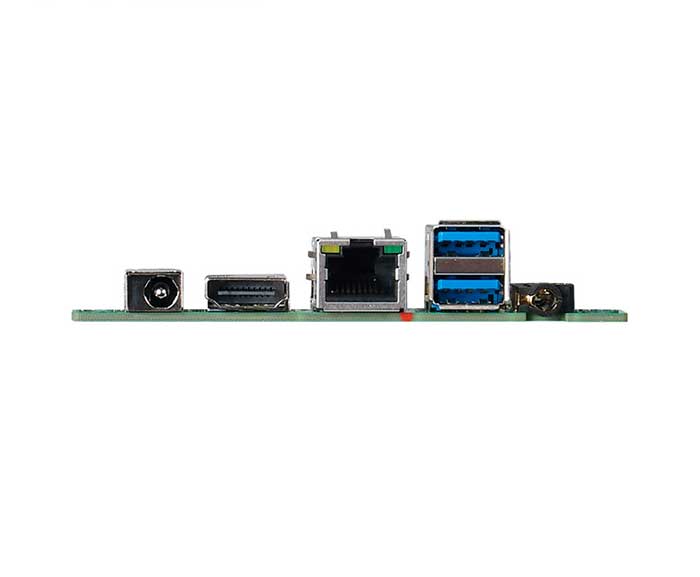

Board Edge I/O
|
DC JACK, HDMI, 2 x USB3.2, 1 x LAN, Audio
|
|
Extended interface/function
|
External TPM2.0 is optional, not available by default
|
|
|
1 x E-Key (PCIe+USB2.0 protocol, WIFI/BT module)
|
|
|
1 x B-Key (USB2.0+ USB 3.0 protocol, 4G/5G module)
|
|
|
2 x COM, RS232 /422/485, pitch 2.0mm, BIOS selection
|
|
|
2 x JUSB2.0 pin header, 2x5Pin, pitch 2.0mm
|
|
|
8_Bit GPIO
|
|
|
1 x 4Pin PWM CPU FAN
|
|
Power Supply
|
DC 12V, 60W
|
|
Working Environment
|
Working temperature: -20℃ ~ +60℃; Working humidity: 5% ~ 90%
|
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90%
|
|
Operating System
|
Windows10, Windows11, Linux
|
|
Size
|
100 x 72 mm
|
|
Net Weight
|

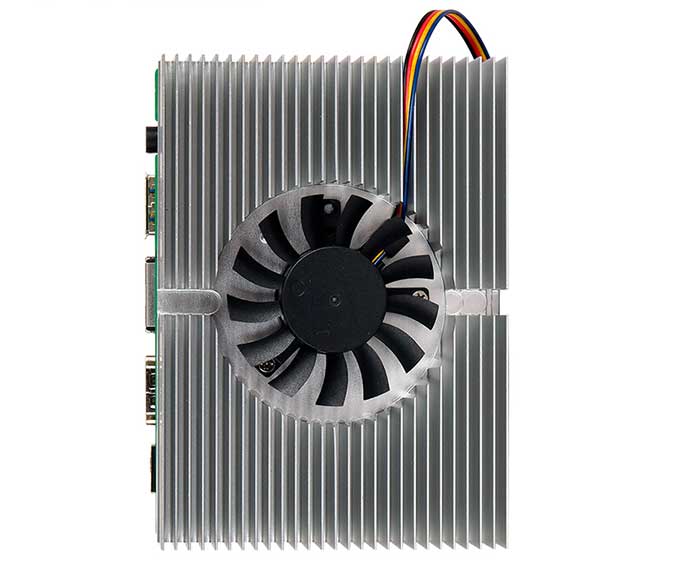

Approximately 100g without radiator, approximately 220g with radiator
|
