Processor system
|
CPU
|
Integrated Intel Gemini Lake single CPU
|
|
|
CPU package
|
BGA
|
|
|
Chipset
|
Intel Gemini Lake serial SOC
|
|
|
BIOS
|
EFI BIOS
|
|
Memory
|
Technology framework
|
Single channel DDR4 2133Mhz
|
|
|
Memory
|
MAX Support DDR4 8G
|
|
|
Socket
|
DDR4 SODIMM 60 Socket
|
|
Video
|
Graphic controller
|
Intel UHD 600 Graphics
|
|
|
HDMI
|
HDMI（2.0）MAX resolution 4K@60Hz
|
|
|
VGA
|
VGA MAX resolution 1920x1200
|
|

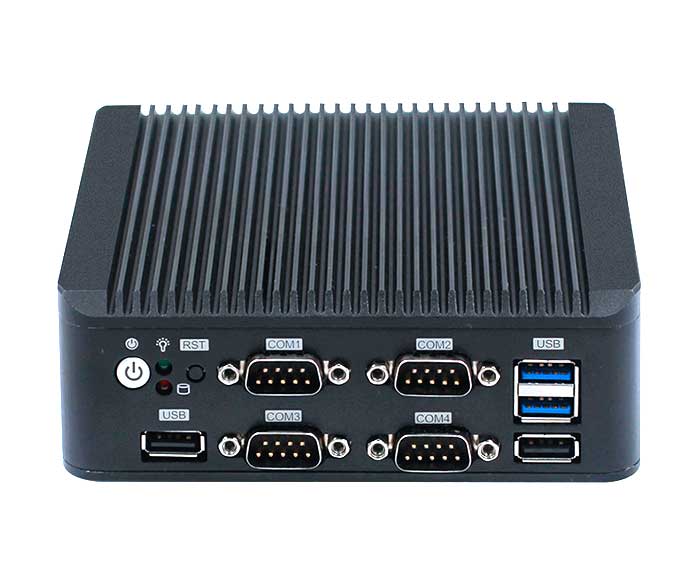

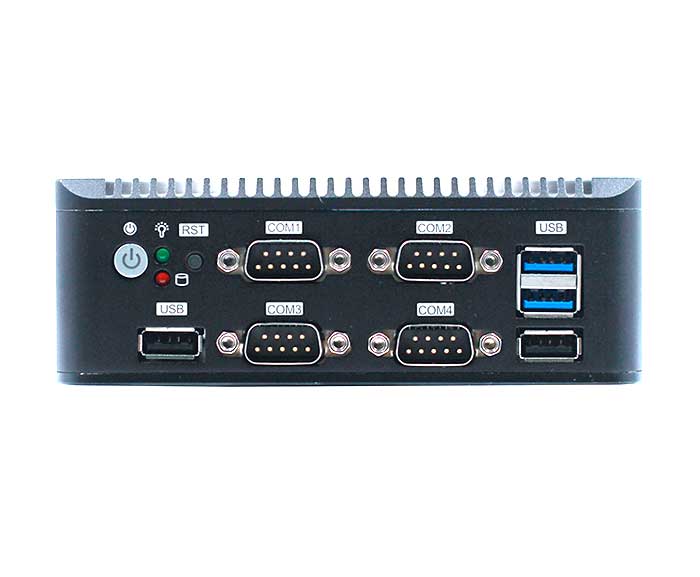

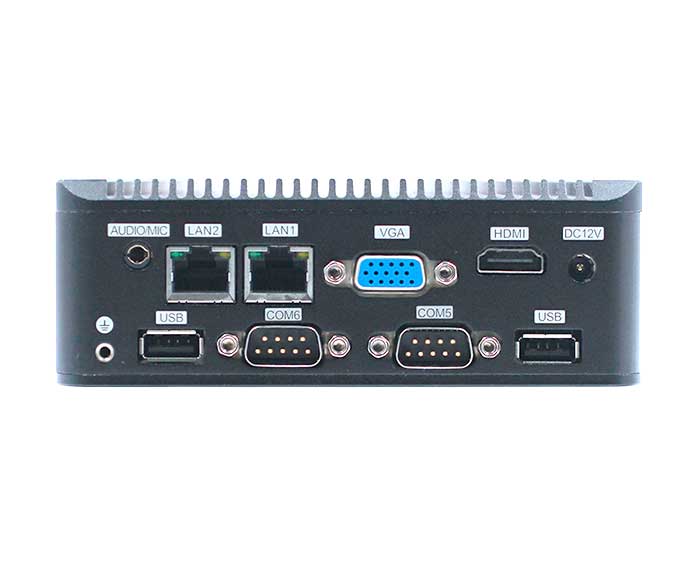

I/O rear panel
|
ports
|
1*HDMI 2*USB3.0 4*USB2.0 2*LAN 6*COM(COM1,2 can be selected as RS232 or RS485 by jumper and BIOS settings，RS485 supports automatic flow control，COM3,COM4,COM5,COM6 are RS232) 1*Quick boot button with indicator light 1*Reset button 1*DC 1*Power indicator light 1*Hard disk indicator light
|
|
Network
|
Controller
|
2*Intel I211AT or Intel I210High-performance gigabit network card(Optional)
|
|
Input/output interface
|
USB
|
4*USB2.0 2*USB3.0 Max support +5V/1A
|
|
|
Com port
|
COM1,2 can be selected as RS232 or RS485 by jumper and BIOS settings，RS485 supports automatic flow control，COM3,COM4,COM5,COM6 are RS232
|
|
Expansion bus
|
Mini-PCle
|
1 Mini-PCIe socket,support PCIe and USB device（5G module or 4G module optional）
|
|
Storage
|
SATA
|
1 standard SATAIII interface with a maximum transfer rate of 6Gb/s
|
|
|
M-SATA
|
1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol, maximum transfer rate of 6gb/s
|
|
|
EMMC
|
Support 32/64/128G(optional）
|
|
Power supply
|
Power Type
|
Single input dc power supply,DC12-19V
|
|
Working environment
|
Operating temperature
|
-20℃ ~ +60℃
|
|
|
Storage temperature
|
-40℃ ~ +85℃
|
|
|
Working humidity
|
0% ~ 90% relative humidity, no condensation
|
|
|
Storage humidity
|
0% ~ 90% relative humidity, no condensation
|
|
System Support
|
|
Windows10 Linux
|
|
Physical dimension
|
Size
|
134*126*46.8 mm
|
|
|
Weight
|
0.5KG
|
|
Certification
|
|
CE,ROHS,FCC
|
