Mini PC
|
Model Name
|
N-BOX-J2
|
|
|
Color
|
Color
|
|
|
size
|
134*126*45.3 mm
|
|
|
material
|
6063
|
|
Motherboard
|
Chipset
|
Baytrail-I/D/M serial processor chipset
|
|
|
CPU
|
Support Baytrail-I/D/M serial CPU (J1900 J1800)
|
|
|
Ram
|
Single channel DDR3 1066/1333/1600MHz，max support 8G
|
|
|
Graphics card
|
Intel HD Graphics
|
|
|
Expansion
|
1*MINI-PCIE interface for loading wifi, 3G/4G modules (USB signal devices only)
|
|
|
|
1*MINI-SATA interface for loading SSD solid state drives
|
|
|
|
1* onboard EMMC 32/64/128G (optional)
|
|
Storage
|
HDD
|
2.5inch laptop hard disk
|
|
|
SSD
|
SSD
|
|
|
EMMC
|
32/64/128G（optional ）
|
|
Function
|
Display output
|
HDMI
|
|
|
Internet Output
|
4*Intel I211 Lan Port
|
|
|
USB
|
1*USB2.0、1*USB3.0
|
|
|

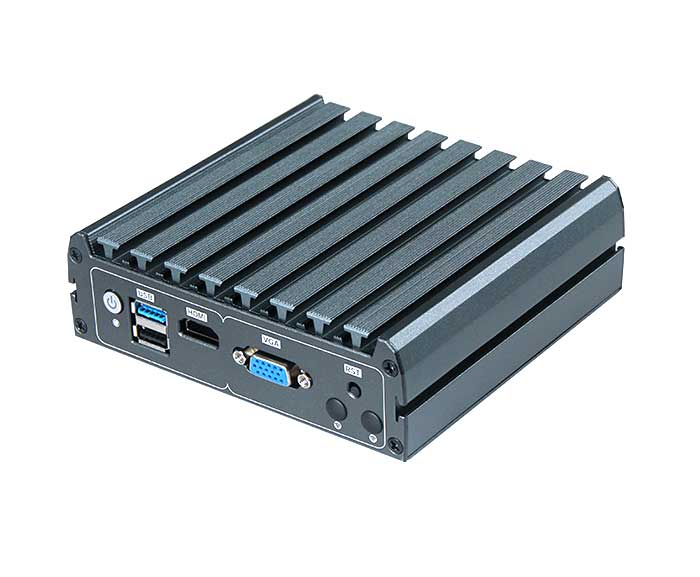

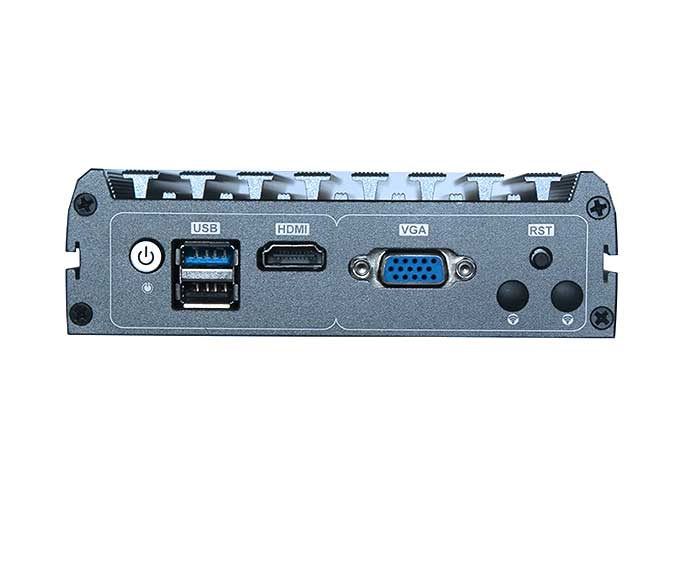

Front I / O interface
|
1* power switch (with indicator light), 1* reset button, 1*HDMI, 1*RJ45 interface RS232,
2*USB
|
|
|

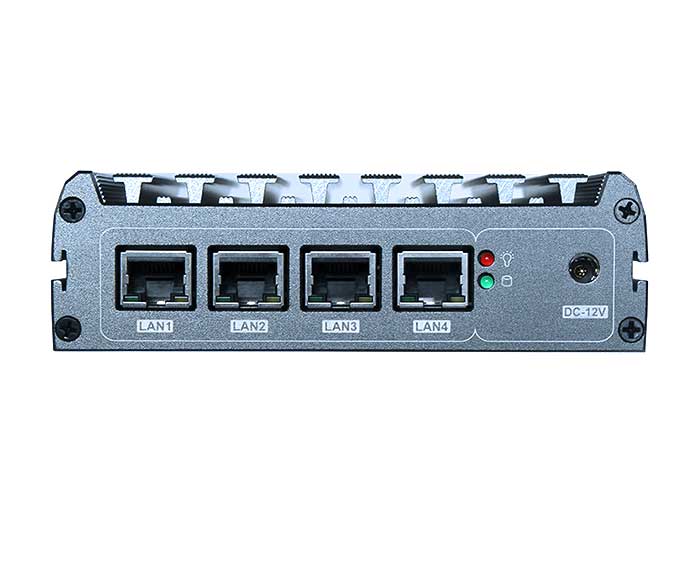

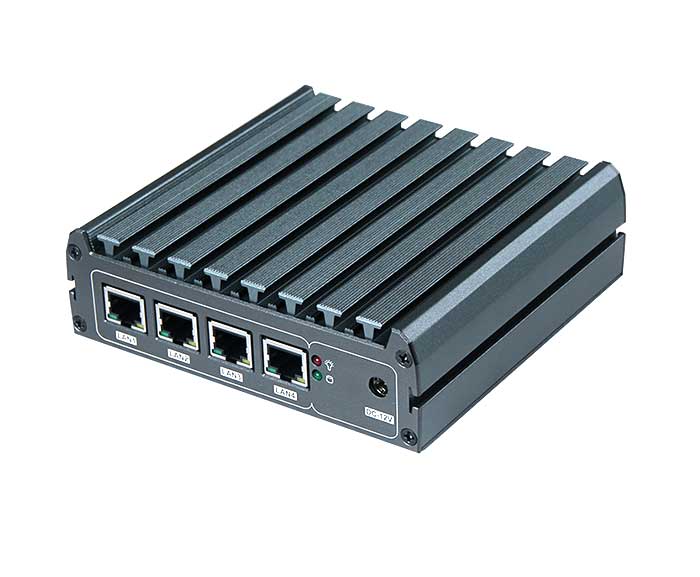

Rear I / O connector
|
4*Intel I211 high-performance Gigabit LAN, 1* power indicator, 1* hard disk indicator,
1*DC power supply interface
|
|
|
Working temperature
|
-10~60℃
|
|
|
Operating system
|
Windows7、Windows 8、Windows8.1 Windows10、linux
|
|
|
Power supply
|
DC12-19V power supply
|
