Processor System
|
Intel Alder Lake-N series processors
|
|
|
EFI BIOS
|
|
Memory
|
1 x DDR5 SO-DIMM, max 16GB
|
|
Storage
|
1 x M.2 M-Key 2280 (PCIe_x 2 protocol)
|
|
Display
|
1 x HDMI2.0 interface, support 4K@60Hz
|
|
|
1 x DP1.4 interface, support 8K@60Hz
|
|
|
1 x Type-C interface, support 8K@60Hz
|
|

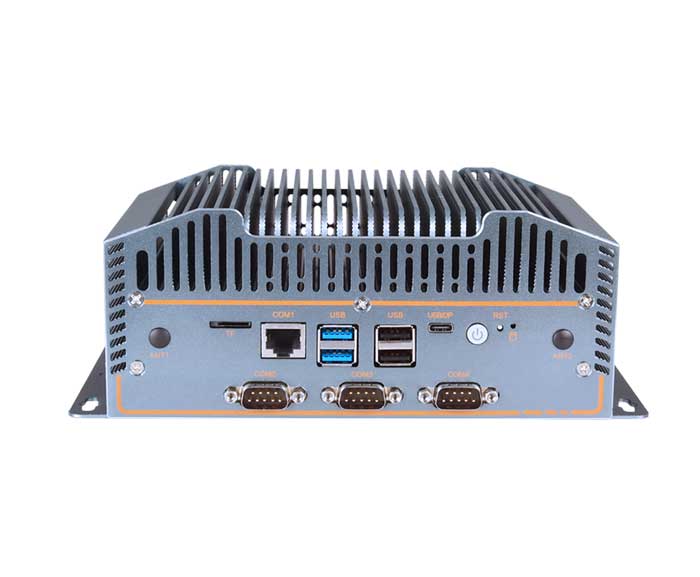

Front Panel Interface
|
4 x USB; 3 x DB9 COM
|
|
|
CONSOLE; Type-C; 2 x ANT
|
|
|
PWR SW; RST; HDD LED
|
|

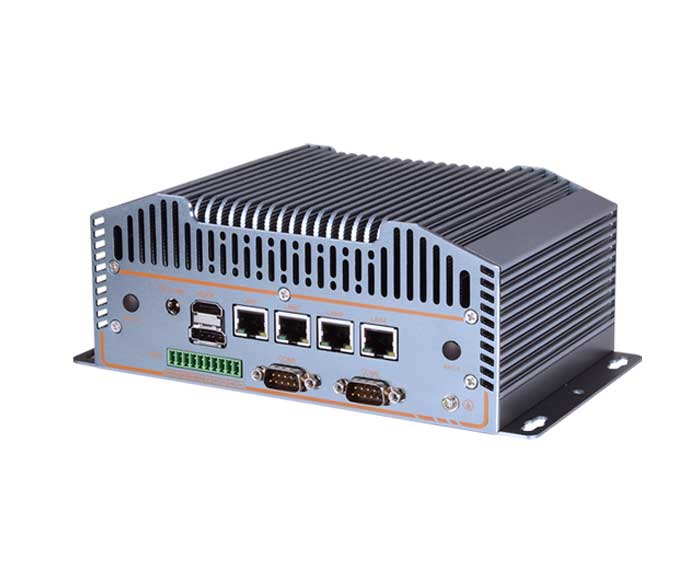

Rear Panel Connectors
|
4 x LAN (3 x Intel i226-V, 1 x RTL8156B, optional POE 48V/15W)
|
|
|
HDMI, DP, DC JACK
|
|
|
2 x DB9 COM; 8-Bit GPIO; 2 x ANT
|
|
Extended Functionality
|
Mini PCIe (WIFI/BT/4G/mSATA)
|
|
Power Supply
|
DC12V
|
|
Work Environment
|
Working temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90%
|
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90%
|
|
Operating System
|
Windows 10, Windows 11, Linux
|
|
Host Size
|
123 x 220 x 80 mm
|
|
Single Packing Size
|
26 x 16 x 19.5 cm
|
|
Gross Weight
|
About 2.5Kg
|
