Material
|
Aluminum profile, iron gray
|
|
Processor
|
Onboard Intel Core 12th / 13th generation -U/-P series processor, TDP15W
Onboard Intel Core Ultra series processor
|
|
|
EFI BIOS
|
|
Memory
|
2 x DDR5 SO-DIMM, total maximum 64 GB
|
|
Storage
|
1 x M.2 M-Key 2280 (PCIe 4.0 x 4)
|
|
|
1 x M.2 M-Key 2280 (next to E-Key, PCIe 4.0 x 4/SATA3.0 protocol optional) Please note when placing an order
|
|
|
1 x 2.5-inch SATA3.0, 2Pin 5V power supply
|
|
Display
|
1 x HDMI2.0, 4K@60Hz
|
|
|
1 x DP, 8K@60Hz
|
|
|
Type-C interface (DP 8K@60Hz + USB3.2)
|
|

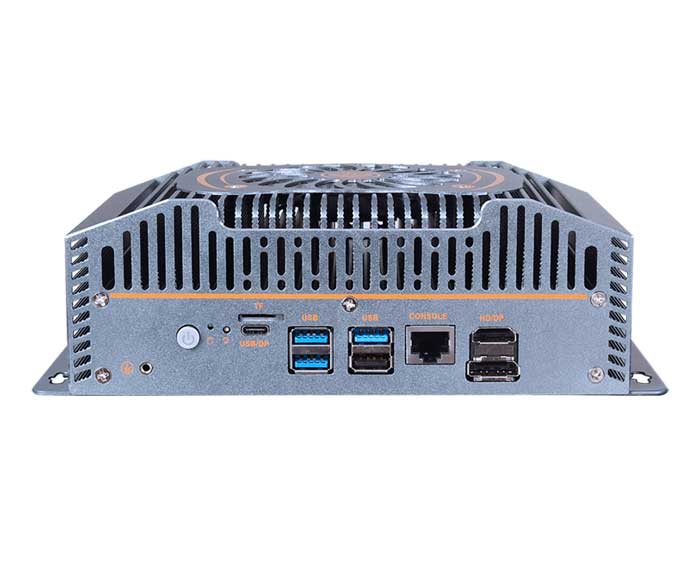

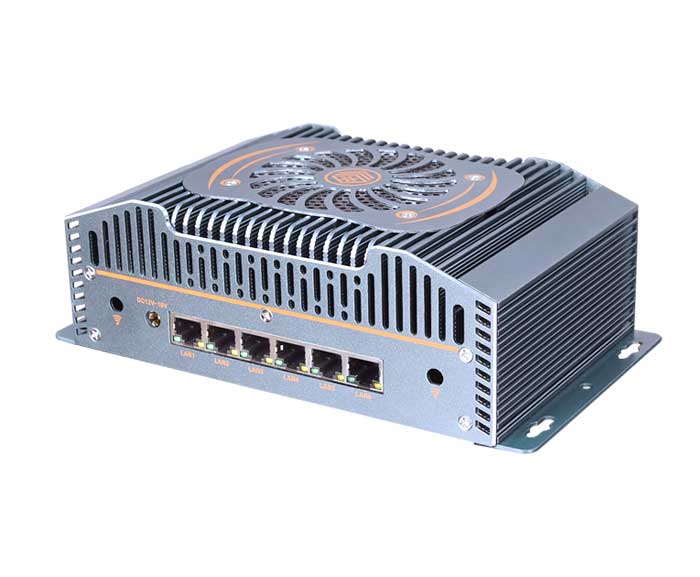

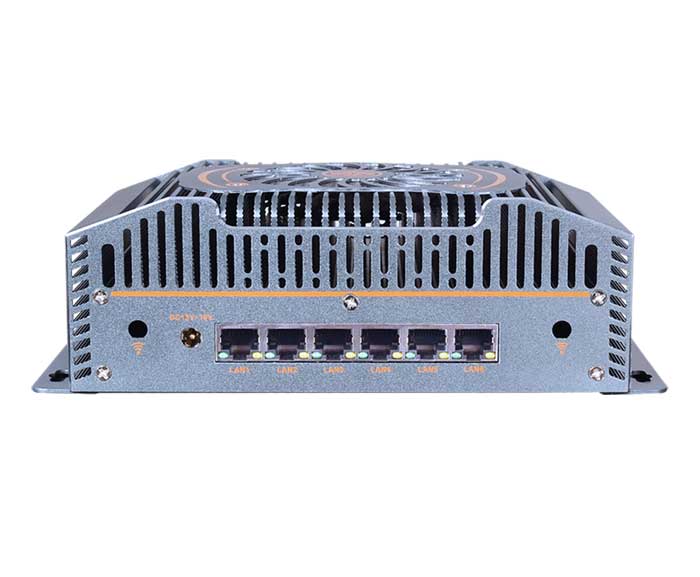

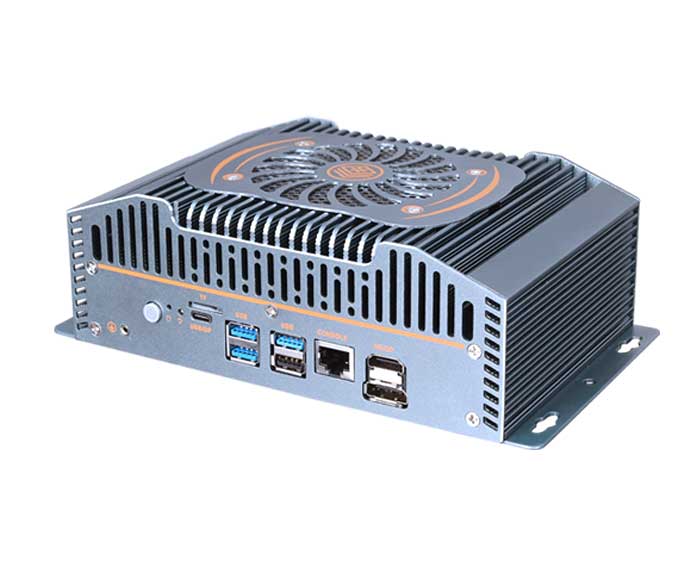

Board Edge I/O interface
|
DC JACK, 6 x LAN, 1 x HDMI, 1 x DP
|
|
|
4 x USB, TF card, Type-C (USB+DP)
|
|
|
Switch button, reset button, 1 x CONSOLE
|
|
Extended interface/function
|
External TPM2.0 optional
|
|
|
1 x E-Key (PCIe+USB2.0, WIFI/BT)
|
|
Power Supply
|
DC 12-19V, 90W
|
|
Working Environment
|
Working temperature: -20℃ ~ +60℃; Working humidity: 5% ~ 90%
|
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90%
|
|
Operating System
|
Win10, Win11, Linux
|
|
Size
|
216 x 123.6 x 67.5mm
|
|
Weight
|
Host net weight is about 1600g, the gross weight is about 2500g.
|
